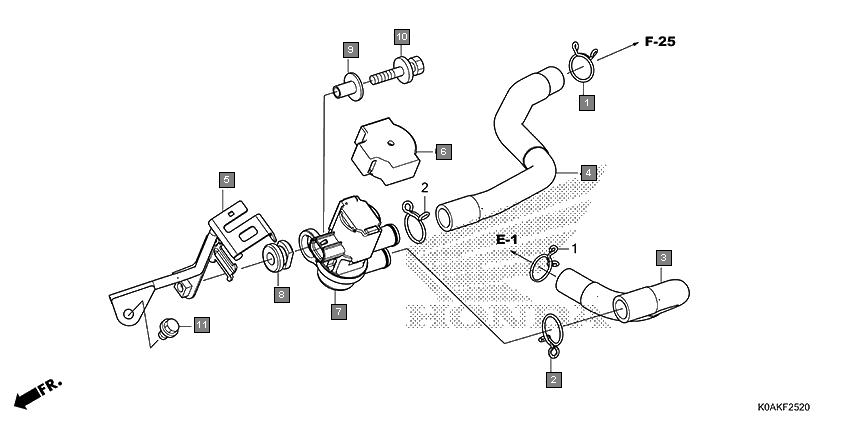

Motorcycles CB300R CBF300NAK Frame Air injection solenoid valve
Ref.No. Part No. Description Oty
1 17316611000 CLIP, BREATHER TUBE 2
2 17724102700 CLIP, SUB TANK HOSE 2
3 18651K0AE10 TUBE(AISV-ENGINE) 1
4 18652K0AE10 TUBE(AISV-AIR CLEANER) 1
5 19150K0AE10 BRACKET, AIR INJECTION SOLENOID VALVE 1
6 35451KVZ630 CAP, AIR INJECTION SOLENOID VALVE 1
7 36450KVZ631 VALVE ASSY., AIR INJECTION SOLENOID 1
8 43516MR5000 RUBBER, MOUNTING 1
9 50324425010 COLLAR, 6.3X13 1
10 934040602507 BOLT-WASHER, 6X25 1
11 957010601007 BOLT, FLANGE, 6X10 1
