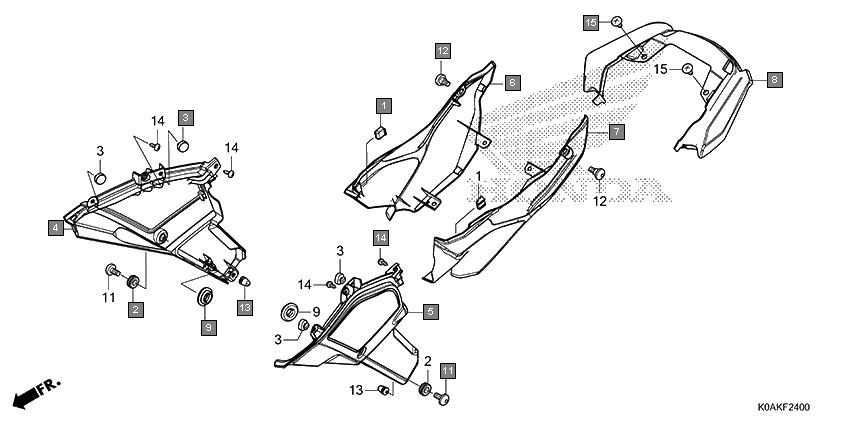

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 18293KYY900 | RUBBER, PROTECTOR PACKING | 2 |
2 | 33181MBB000 | RUBBER, POSITION LIGHT | 2 |
3 | 50352GS6000 | RUBBER, LINK STOPPER | 4 |
4 | 83511K0AE10 | COVER A, R. SIDE | 1 |
5 | 83512K0AE10 | COVER A, L. SIDE | 1 |
6 | 83531K0AE10ZA | COVER B, R. SIDE *NH303M* MAT AXIS GRAY METALLIC | 1 |
7 | 83531K0AE10ZB | COVER B, R. SIDE *NH1* BLACK | 1 |
8 | 83541K0AE10ZA | COVER B, L. SIDE *NH303M* MAT AXIS GRAY METALLIC | 1 |
9 | 83541K0AE10ZB | COVER B, L. SIDE *NH1* BLACK | 1 |
10 | 83550K0AE10ZA | COWL SET, RR. CENTER(WL) *TYPE1* | 1 |
11 | 83551300000 | GROMMET, AIR CLEANER CASE | 2 |
12 | 90104K94T00 | SCREW, PAN, 5X10 | 2 |
13 | 90114KPH700 | SCREW, SPECIAL, 5X11 | 2 |
14 | 90899422610 | PLUG, CONE TYPE | 2 |
15 | 9390324280 | SCREW, TAPPING, 4X10 | 4 |
16 | 9390325220 | SCREW, TAPPING, 5X12 | 2 |
