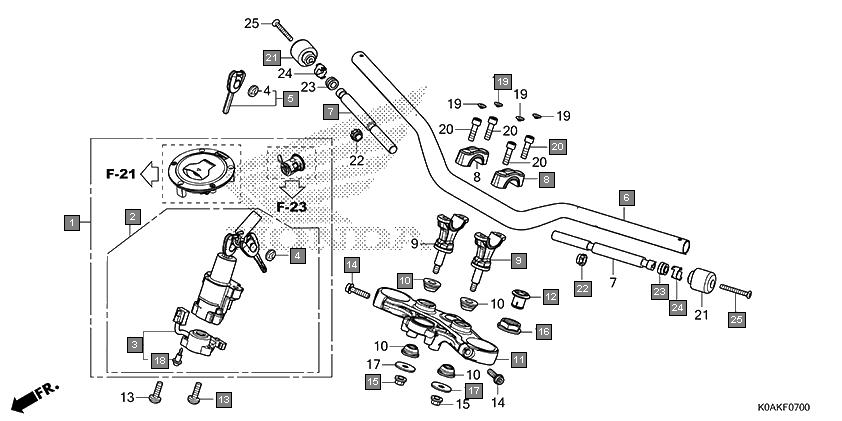

Motorcycles CB300R CBF300NAK Frame Handle pipe/top bridge
Ref.No. Part No. Description Oty
1 35010K0AE10 KEY SET 1
2 35100K94T01 SWITCH ASSY., COMBINATION & LOCK 1
3 35101K94T01 BASE COMP., CONTACT 1
4 35113MJED00 EMBLEM, KEY 4
5 35113MJED00 EMBLEM, KEY 2
6 35121MJEA02 KEY, BLANK 1
7 53100K0AE10ZA PIPE, STEERING HANDLE *NH303M* MAT AXIS GRAY METALLIC 1
8 53104KYJ900 WEIGHT B, STEERING HANDLE 2
9 53131K94T00ZB HOLDER, HANDLE UPPER *NH303M* MAT AXIS GRAY METALLIC 2
10 53132K94T00ZB HOLDER, HANDLE PIPE UNDER *NH303M* MAT AXIS GRAY METALLIC 2
11 53136K94T00 RUBBER, HANDLE CUSHION 4
12 53230K94T00 BRIDGE, FORK TOP 1
13 53232K94T00 CAP, STEERING NUT 1
14 90107MBG000 BOLT, ONE-WAY, 8MM 2
15 90160K94T00 BOLT, SOCKET, 8X32 2
16 90304KPG901 NUT, U, 8MM 2
17 90304MCF000 NUT, STEERING STEM FLANGE 1
18 90535K26900 WASHER, HANDLE UNDER HOLDER 2
19 91059KY2711 SCREW, TAPPING, 3X16 3
20 91456371770 CAP, SOCKET BOLT 4
21 966000802808 BOLT, SOCKET, 8X28 4
22 53104MGZJ00 WEIGHT, STEERING HANDLE 2
23 53106KR3770 RUBBER A, HANDLE WEIGHT 2
24 53107MY1000 RUBBER B, HANDLE WEIGHT 2
25 53108KR3770 RING, HANDLE WEIGHT SNAP 2
26 90191KYJ900 SCREW, OVAL, 6X50 2
