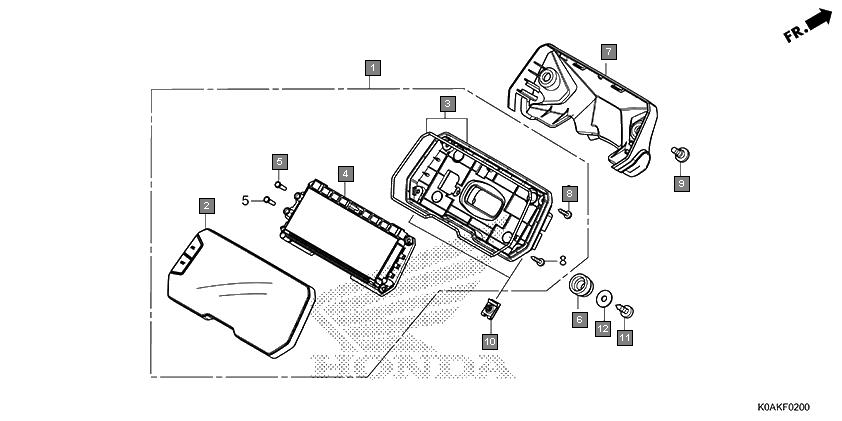

Motorcycles CB300R CBF300NAK Frame Meter
Ref.No. Part No. Description Oty
1 37100K0AD11 METER ASSY., COMBINATION(KPH) 1
2 37110K0AE12 CASE ASSY., UPPER 1
3 37120K0AD11 CASE ASSY., UNDER 1
4 37130K0AD11 METER COMP., LCD 1
5 37205K94T01 KEY, TOP 2
6 37215KZZ900 RUBBER, METER SETTING 3
7 64110K94T00 COVER, METER 1
8 90101KY6008 SCREW, TAPPING, 3X14 5
9 90134KPPT00 SCREW, PAN, 5X14 2
10 90677KANT00 NUT, CLIP, 5MM 2
11 9391325380 SCREW, TAPPING, 5X14(PO) 3
12 9410305700 WASHER, PLAIN, 5MM 3
