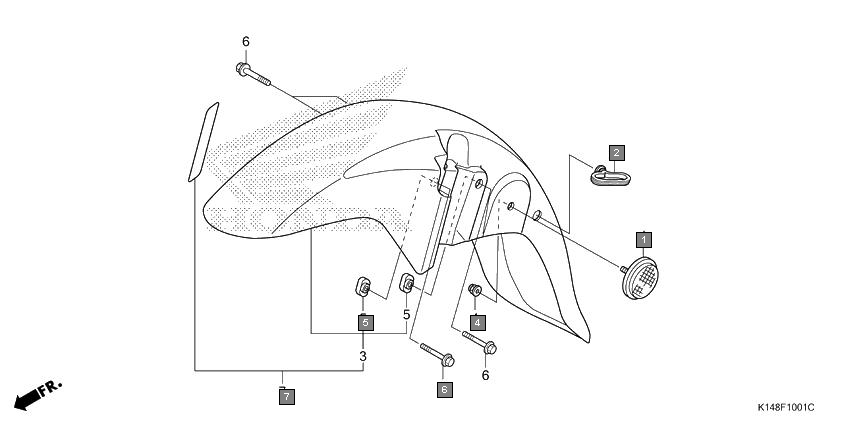

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 33740KTE601 | REFLECTOR, FR. SIDE REFLEX | 2 |
2 | 45451KTE600 | GUIDE, FR. FENDER CABLE | 1 |
3 | 90302KTE911 | NUT, FLANGE SPECIAL, 6MM (SIMMONDS MARSHALL) | 2 |
4 | 90304K14960 | NUT, 6MM | 4 |
5 | 960010602000 | BOLT, FLANGE, 6X20 | 4 |
6 | 61110K14C10ZE | FENDER SET, FR.(WL) *TYPE2* | 1 |
7 | 61110K14C10ZD | FENDER SET, FR.(WL) *TYPE3* | 1 |
8 | 61110K14C10ZC | FENDER SET, FR.(WL) *TYPE4* | 1 |
9 | 61110K14C10ZB | FENDER SET, FR.(WL) *TYPE5* | 1 |
10 | 61110K14C10ZF | FENDER SET, FR.(WL) *TYPE1* | 1 |
11 | 61110K14C10ZA | FENDER SET, FR.(WL) *TYPE6* | 1 |
