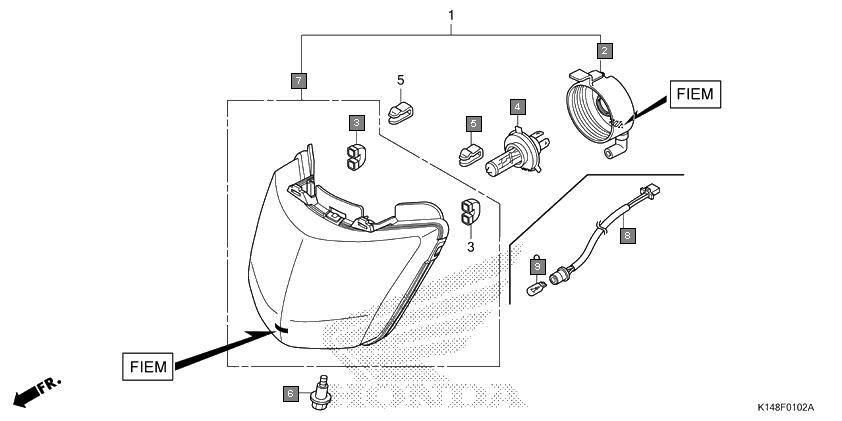

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 33112K14601 | COVER, RUBBER | 1 |
2 | 33706K14601 | TUBE | 2 |
3 | 34901KVN971 | BULB, HEADLIGHT(HS1) (12V 35/35W)(PHOENIX) | 1 |
4 | 34901KTE740 | BULB, HEADLIGHT(HS1) (12V 35/35W)(PHILIPS) | 1 |
5 | 53209GAH000 | CLIP, HEADLIGHT | 2 |
6 | 90101GJ6000 | BOLT, ADJUSTING | 1 |
7 | 33110K14941 | HEADLIGHT UNIT | 1 |
8 | 33150K14941 | SUB CORD, HEADLIGHT | 1 |
9 | 34920KWA930 | BULB, WEDGE BASE(T10 12V 3W) | 1 |
