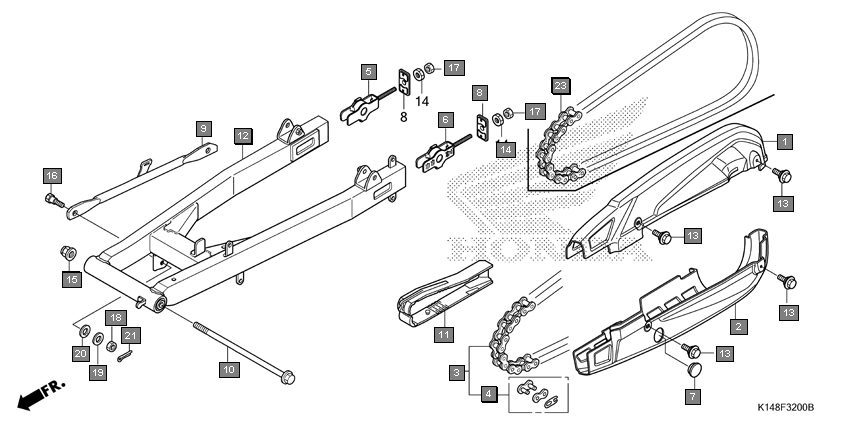

Motorcycles Dream Yuga CB110BK Frame Swingarm
Ref.No. Part No. Description Oty
1 40510K14900 CASE, DRIVE CHAIN UPPER 1
2 40520K14900 CASE, DRIVE CHAIN LOWER 1
3 40543K14900 ADJUSTER COMP., R. CHAIN 1
4 40544K14900 ADJUSTER COMP., L. CHAIN 1
5 40545KWV010 CAP, CHAIN CASE PEEP HOLE 1
6 40546KWF900 CAP, SWINGARM END 2
7 43431K55970 ARM, RR. BRAKE STOPPER 1
8 52101KZAW00 BOLT, SWINGARM PIVOT 1
9 52170K55970 SLIDER, CHAIN 1
10 52200K55970 SWINGARM SUB ASSY., RR. 1
11 90111162000 BOLT, FLANGE, 6MM 4
12 90302KBP900 NUT, SPECIAL, 6MM 2
13 90306KTE911 NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) 1
14 9281210000 BOLT A, STOPPER ARM 1
15 94001060000S NUT, HEX., 6MM 2
16 94001080000S NUT, HEX., 8MM 1
17 9410108000 WASHER, PLAIN, 8MM 1
18 9411110000 WASHER, SPRING, 10MM 1
19 9420120150 PIN, SPLIT, 2.0X15 1
20 40530K55952 CHAIN, DRIVE(LGB) (LGB R420OR-118LE) 1
21 40530K55951 CHAIN, DRIVE(DAIDO) (DID420ADV-118LE) 1
22 40530K55953 CHAIN, DRIVE(TIDC) (TIDC420XR-118LE) 1
