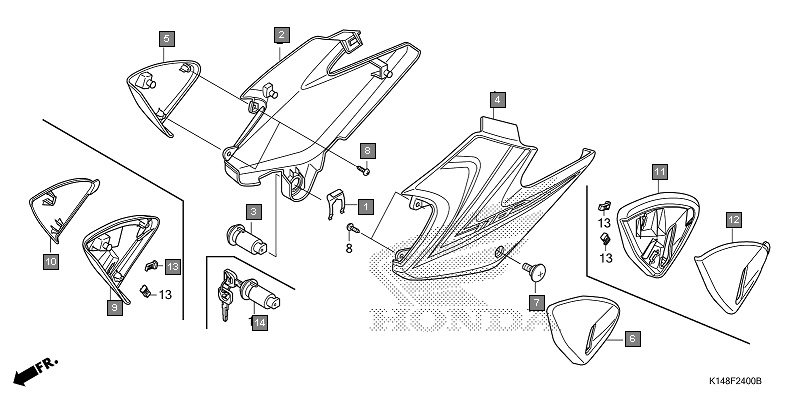

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 75581GN8920 | SPRING, LOCK KEY SETTING | 1 |
2 | 83520K14C00ZC | COVER SET, R. SIDE(WL) *TYPE4* | 1 |
3 | 83520K14C00ZB | COVER SET, R. SIDE(WL) *TYPE5* | 1 |
4 | 83520K14C00ZE | COVER SET, R. SIDE(WL) *TYPE2* | 1 |
5 | 83520K14C00ZF | COVER SET, R. SIDE(WL) *TYPE1* | 1 |
6 | 83520K14C00ZD | COVER SET, R. SIDE(WL) *TYPE3* | 1 |
7 | 83550K14931 | LOCK, SIDE COVER(MINDA) | 1 |
8 | 83620K14C00ZE | COVER SET, L. SIDE(WL) *TYPE2* | 1 |
9 | 83620K14C00ZC | COVER SET, L. SIDE(WL) *TYPE4* | 1 |
10 | 83620K14C00ZB | COVER SET, L. SIDE(WL) *TYPE5* | 1 |
11 | 83620K14C00ZD | COVER SET, L. SIDE(WL) *TYPE3* | 1 |
12 | 83620K14C00ZF | COVER SET, L. SIDE(WL) *TYPE1* | 1 |
13 | 90103K14900 | BOLT, COWL SETTING | 1 |
14 | 9390324220 | SCREW, TAPPING, 4X10 | 4 |
15 | 83741K14A30 | COVER A, R. SIDE(SUB) | 1 |
16 | 83745K14A30 | COVER B, R. SIDE(SUB) | 1 |
17 | 83841K14A30 | COVER A, L. SIDE(SUB) | 1 |
18 | 83845K14A30 | COVER B, L. SIDE(SUB) | 1 |
19 | 90651K14A31 | CLIP, SLIDE | 4 |
20 | 83550K14901 | LOCK, SIDE COVER(JAY USHIN) | 1 |
