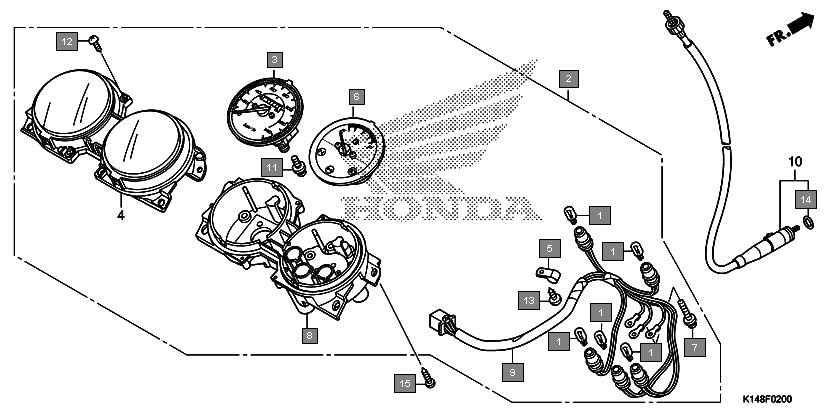

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 34908KVE900 | BULB, WEDGE BASE(T10) (12V 1.7W)(TOSHIBA) | 5 |
2 | 37100K14C01 | METER ASSY., COMBINATION(KPH) | 1 |
3 | 37210K14C01 | SPEEDOMETER COMP | 1 |
4 | 37211K14900 | LENS | 1 |
5 | 37215KS3901 | CLAMP | 1 |
6 | 37300K14C01 | METER COMP., FUEL | 1 |
7 | 37305KE5008 | SCREW-WASHER, 3X22 | 3 |
8 | 37610K14901 | CASE ASSY., UNDER | 1 |
9 | 37619KTE601 | SOCKET COMP. | 1 |
10 | 44830K14901 | CABLE COMP., SPEEDOMETER | 1 |
11 | 90035166008 | SCREW-WASHER, SPECIAL, 4X10 | 2 |
12 | 90101KY6008 | SCREW, TAPPING, 3X14 | 4 |
13 | 90109MZ5008 | SCREW, TAPPING, 4X14 | 1 |
14 | 91256KK3840 | O-RING, 10X1.5 | 1 |
15 | 9390335310 | SCREW, TAPPING, 5X16 | 4 |
