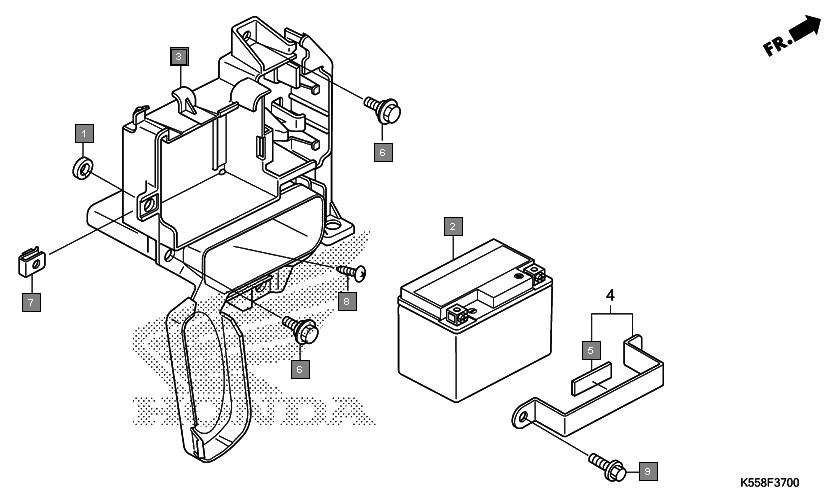

Motorcycles Livo CBF110BK Frame Battery
Ref.No. Part No. Description Oty
1 17223KVX600 COLLAR, AIR CLEANER 1
2 31500KVT801 BATTERY ASSY.(ETZ4-BS)(EXIDE) 1
3 50325K63D30 BOX, BATTERY 1
4 50326KZAW00 BAND, BATTERY 1
5 77211KVE900 CUSHION, RR. COWL 1
6 90111162000 BOLT, FLANGE, 6MM 2
7 90311MT3000 NUT, CLIP, 6MM 1
8 9390325380 SCREW, TAPPING, 5X16 1
9 957010601608 BOLT, FLANGE, 6X16 1
