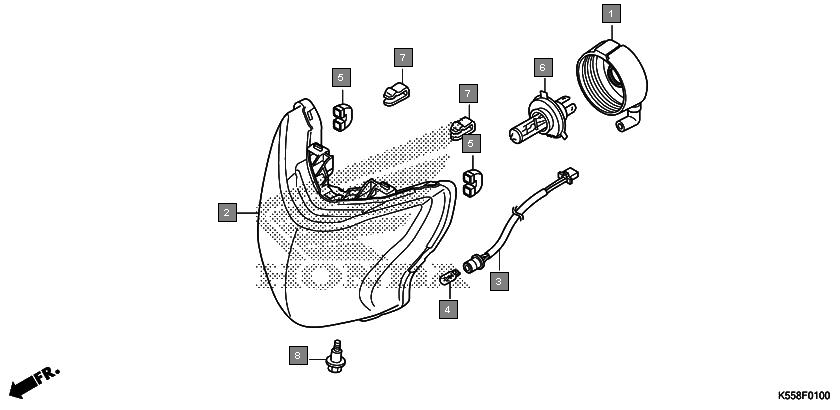

Motorcycles Livo CBF110BK Frame Headlight
Ref.No. Part No. Description Oty
1 33112K55601 COVER, RUBBER 1
2 33120K55601 HEADLIGHT UNIT 1
3 33130K55601 SOCKET COMP., POSITION LIGHT 1
4 33301KYJ901 BULB, WEDGE BASE(T10 12V 5W) 1
5 33706KWS901 TUBE 2
6 34901KVN971 BULB, HEADLIGHT(HS1) (12V 35/35W)(PHOENIX) 1
7 34901KTE740 BULB, HEADLIGHT(HS1) (12V 35/35W)(PHILIPS) 1
8 53209GAH000 CLIP, HEADLIGHT 2
9 90101KTE650 BOLT, ADJUSTING 1
