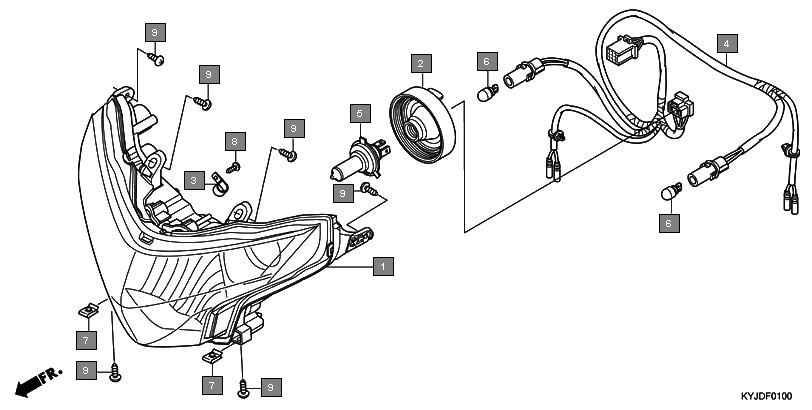

Motorcycles CBR250R CBR250RC Frame Headlight
Ref.No. Part No. Description Oty
1 33110KYJ611 HEADLIGHT UNIT 1
2 33112KWR003 COVER, RUBBER 1
3 33116KPPT01 CLAMP, CORD 1
4 33150KYJ901 SOCKET COMP. 1
5 34901KWR003 BULB, HEADLIGHT(H4) (12V 60/55W)(KOITO) 1
6 34908SB6003 BULB(12V 5W)(KOITO) 2
7 90344KPL900 NUT, CLIP, 5MM 2
8 9390134320 SCREW, TAPPING, 4X12 1
9 9390325380 SCREW, TAPPING, 5X16 6
