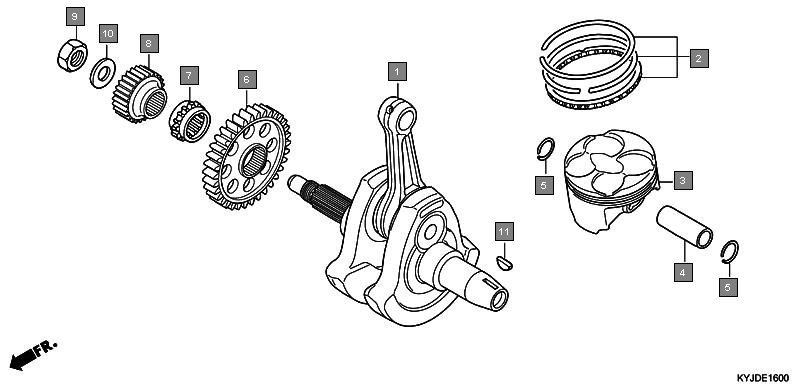

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 13000KYJ902 | CRANKSHAFT COMP. | 1 |
2 | 13010KYJ305 | RING SET, PISTON(STD.) | 1 |
3 | 13101KYJ900 | PISTON(STD.) | 1 |
4 | 13111MEL000 | PIN, PISTON | 1 |
5 | 13112KYJ900 | CLIP, PISTON PIN, 17MM | 2 |
6 | 13417KYJ900 | GEAR, BALANCER DRIVE(34T) | 1 |
7 | 14311KYJ900 | SPROCKET, TIMING(17T) | 1 |
8 | 23121KYJ900 | GEAR, PRIMARY DRIVE(26T) | 1 |
9 | 90235KPF900 | NUT, LOCK, 16MM | 1 |
10 | 90235KYJ900 | NUT, LOCK, 16MM | 1 |
11 | 90434KPS900 | WASHER, 16MM | 1 |
12 | 90742KYJ900 | KEY, WOODRUFF, 25X18 | 1 |
