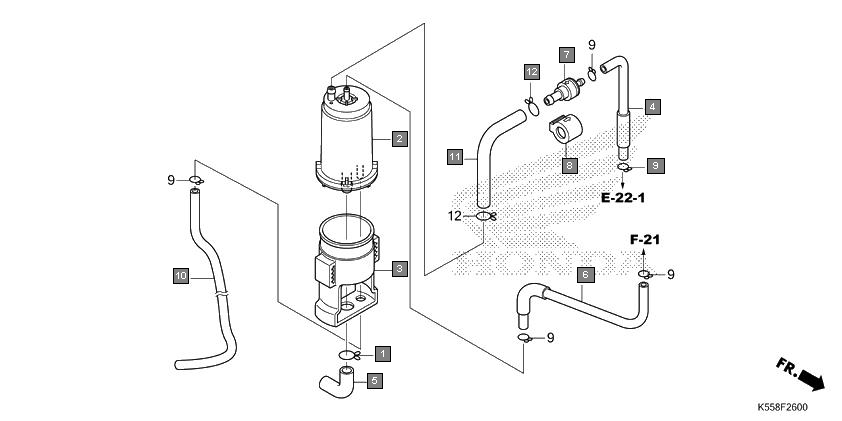

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 17310K55951 | CANISTER COMP | 1 |
2 | 17311K63D30 | RUBBER, CANISTER | 1 |
3 | 17413K63D30 | TUBE, PURGE | 1 |
4 | 17414K63D30 | TUBE, AIR | 1 |
5 | 17415K55900 | TUBE, BREATHER | 1 |
6 | 17440K43901 | VALVE, ONE WAY | 1 |
7 | 17441K43900 | RUBBER, ONE WAY VALVE | 1 |
8 | 90652KWPF00 | CLIP, TUBE(B8) | 5 |
9 | 950014541040 | TUBE, FUEL, 4.5X410 (95001-45001-60M) | 1 |
10 | 950017515040 | TUBE, FUEL, 7.3X150 (95001-75001-60M) | 1 |
11 | 9500202120 | CLIP, TUBE(B12) | 2 |
12 | 16163K43900 | CLIP | 1 |
