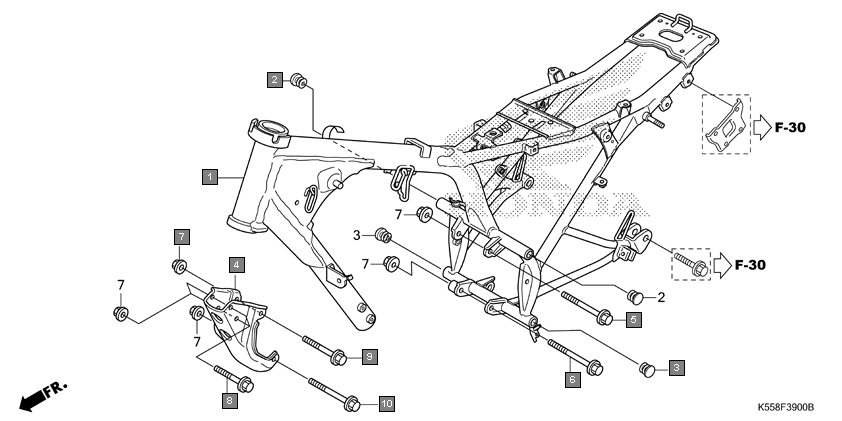

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 50315H06000 | CAP, PIPE END | 2 |
2 | 50315KYY900 | CAP, PIPE END | 2 |
3 | 50351K14910 | PLATE, FR. ENGINE HANGER | 1 |
4 | 90019399010 | BOLT, FLANGE, 10X110 | 1 |
5 | 90132K14900 | BOLT, FLANGE, 10X135 | 1 |
6 | 9405010000 | NUT, FLANGE, 10MM | 6 |
7 | 958011006500 | BOLT, FLANGE, 10X65 | 1 |
8 | 958011008500 | BOLT, FLANGE, 10X85 | 1 |
9 | 958011009500 | BOLT, FLANGE, 10X95 | 1 |
10 | 50100K55900 | BODY COMP, FRAME | 1 |
