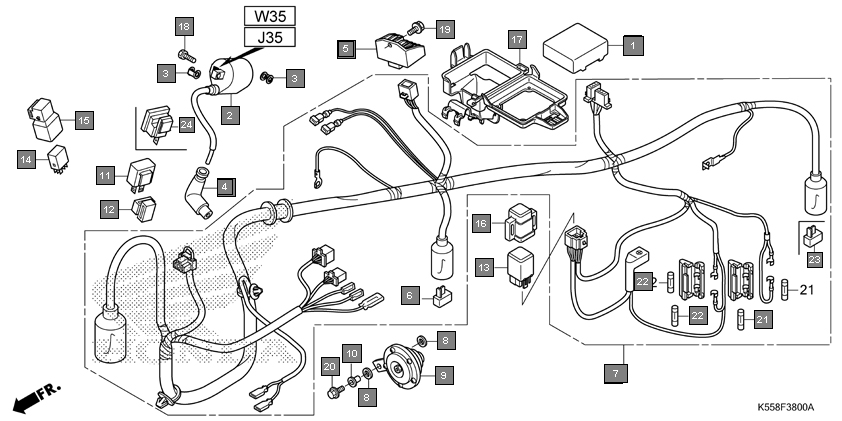

Motorcycles Livo CBF110J Frame Wire harness
Ref.No. Part No. Description Oty
1 30410K55951 SPARK UNIT(SHINDENGEN) 1
2 30500K14901 COIL ASSY., IGNITION(WINGS) (W35) 1
3 30500K14931 COIL ASSY., IGNITION(JAGDISH)(J35) 1
4 30520GFM900 SPACER, IGNITION COIL 2
5 30700K14901 CAP ASSY., NOISE SUPPRESSOR (KUNAL) 1
6 30700KTE601 CAP ASSY., NOISE SUPPRESSOR(ANU) 1
7 32100K55950 HARNESS, WIRE 1
8 31600K14962 RECTIFIER COMP., REGULATE(SINDENGEN) 1
9 31700124008 RECTIFIER ASSY., SILICON(SHINDENGEN) 1
10 38117KTED80 COLLAR, HORN SETTING 1
11 32100K14960 HARNESS, WIRE(MINDA SAI) 1
12 33714KL3620 RUBBER, TAILLIGHT BRACKET 2
13 38110K14901 HORN COMP. 1
14 38117KFE701 COLLAR, HORN SETTING 1
15 38301K14962 RELAY COMP., WINKER (STAR ENGINEERS) 1
16 38306K14931 SUSPENSION, WINKER RELAY (STAR ENGINEERS) 1
17 38501KPL901 RELAY COMP., STARTER(MULTILINK) 1
18 38502KSP910 RELAY COMP., POWER (MICRO ISO 5P) 1
19 38502KWA931 RELAY COMP., POWER (MICRO ISO 5P)(MULTILINK) 1
20 38506K23900 SUSPENSION, POWER RELAY 2
21 38506K23910 SUSPENSION, STARTER RELAY 1
22 50370K14960 HOLDER, C.D.I. UNIT 1
23 92101060204J BOLT, HEX., 6X20 2
24 957010601200 BOLT, FLANGE, 6X12 1
25 957020601200 BOLT, FLANGE, 6X12 1
26 957010602000 BOLT, FLANGE, 6X20 1
27 957020602000 BOLT, FLANGE, 6X20 1
28 9820011000 FUSE A(10A) 2
29 9820011500 FUSE(15A) 2
30 30410K55901 SPARK UNIT(SHINDENGEN) 1
31 31600KTED01 RECTIFIER COMP., REGULATOR 1
32 32100K55900 HARNESS, WIRE 1
33 38301K63D21 RELAY COMP., WINKER (STAR ENGINEERS) 1
