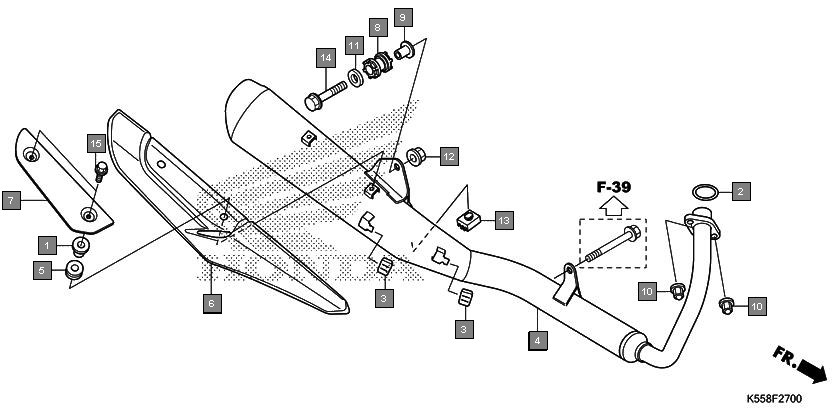

Motorcycles Livo CBF110J Frame Exhaust muffler
Ref.No. Part No. Description Oty
1 18201KRY970 COLLAR, MUFFLER MOUNTING 2
2 18291GE2921 GASKET, EX. PIPE 1
3 18293MCAA20 RUBBER, PROTECTOR PACKING 2
4 18300K55600 MUFFLER COMP., EX. 1
5 18345MBT610 RUBBER, PROTECTOR MOUNTING 2
6 18355K55600 COVER A, MUFFLER 1
7 18356K38900 COVER B, MUFFLER 1
8 18421KBA900 RUBBER, MUFFLER MOUNTING 1
9 18422KBA900 COLLAR, MUFFLER MOUNTING 1
10 90305KSP900 NUT, EXHAUST PIPE, 8MM 2
11 90505KY4900 WASHER, PLAIN, 8MM 1
12 9405008000 NUT, FLANGE, 8MM 1
13 9501161000 RUBBER A, STAND STOPPER 1
14 958010804508 BOLT, FLANGE, 8X45 1
15 960010601402 BOLT, FLANGE, 6X14 2
16 958020804508 BOLT, FLANGE, 8X45 1
17 18300K55900 MUFFLER COMP, EX 1
18 18355K55900 COVER A, MUFFLER 1
19 18356K55600 COVER B, MUFFLER 1
