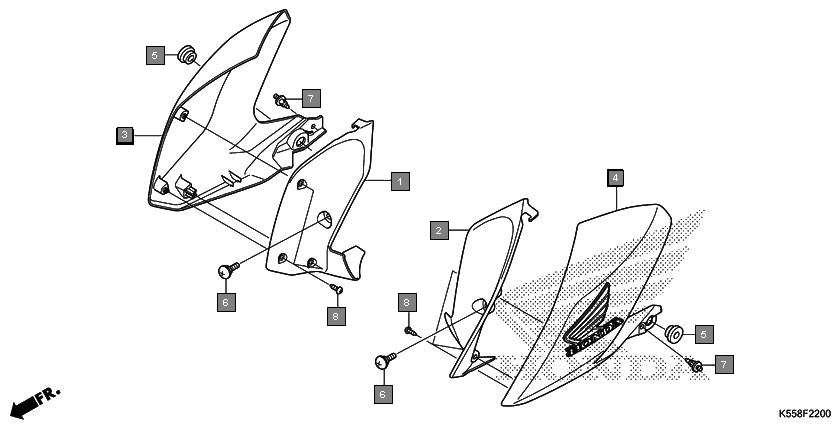

Motorcycles Livo CBF110J Frame Shroud
Ref.No. Part No. Description Oty
1 50265K55600 SHROUD, R. INNER 1
2 50275K55600 SHROUD, L. INNER 1
3 64500K55600ZE SHROUD SET, R. OUTER(WL) *R355M*.IMPERIAL RED METALLIC 1
4 64500K55600ZA SHROUD SET, R. OUTER(WL) *YR333M* SUNSET BROWN METALLIC 1
5 64500K55600ZC SHROUD SET, R. OUTER(WL) *NH1* BLACK 1
6 64500K55600ZD SHROUD SET, R. OUTER(WL) *NHB63P* PEARL AMAZING WHITE 1
7 64500K55600ZB SHROUD SET, R. OUTER(WL) *PB396M* ATHLETIC BULE METALLIC 1
8 64500K55600ZF SHROUD SET, R. OUTER(WL) *NH303M*. MAT AXIS GRAY METALLIC 1
9 64600K55600ZE SHROUD SET, L. OUTER(WL) *R355M*.IMPERIAL RED METALLIC 1
10 64600K55600ZF SHROUD SET, L. OUTER(WL) *NH303M*. MAT AXIS GRAY METALLIC 1
11 64600K55600ZA SHROUD SET, L. OUTER(WL) *YR333M* SUNSET BROWN METALLIC 1
12 64600K55600ZB SHROUD SET, L. OUTER(WL) *PB396M* ATHLETIC BULE METALLIC 1
13 64600K55600ZC SHROUD SET, L. OUTER(WL) *NH1* BLACK 1
14 64600K55600ZD SHROUD SET, L. OUTER(WL) *NHB63P* PEARL AMAZING WHITE 1
15 83551376000 GROMMET, SIDE COVER 2
16 90104KT2000 SCREW, SPECIAL, 6X14 2
17 90116SP0003 CLIP, BUMPER SEAL 2
18 9390324280 SCREW, TAPPING, 4X10 6
