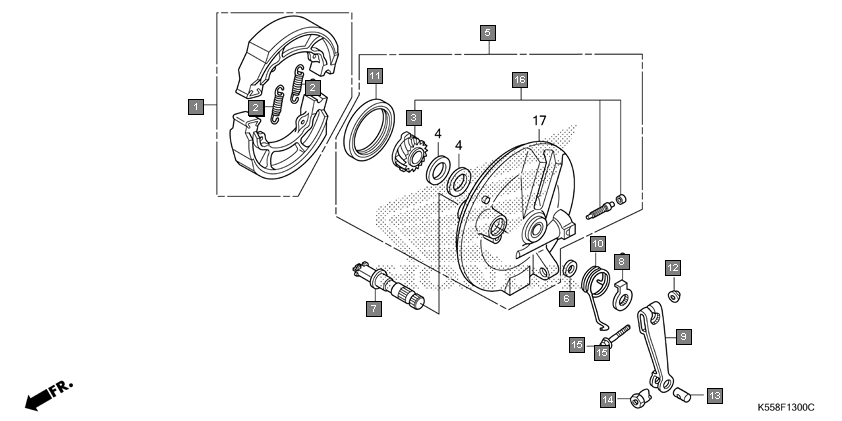

Motorcycles Livo CBF110J Frame Front brake panel
Ref.No. Part No. Description Oty
1 06430KTN700 SHOE SET, BRAKE(JB) 1
2 06430KVTD10 SHOE SET, BRAKE(ASK) 1
3 43151329000 SPRING, BRAKE SHOE (ASK) 2
4 45133KCC900 SPRING, FR. BRAKE SHOE (FOR RR.) 2
5 45133KPL900 SPRING, FR.BRAKE SHOE (ASK)(FOR RR.) 2
6 45134250000 DUST SEAL, BRAKE CAM 1
7 45141KTC900 CAM, FR. BRAKE 1
8 45145096650 INDICATOR, FR. BRAKE 1
9 45410K23900 ARM, FR. BRAKE 1
10 45435KPL900 SPRING, BRAKE ARM RETURN 1
11 9405006000 NUT, FLANGE, 6MM 1
12 9501532001 JOINT B, BRAKE ARM 1
13 9501542000 NUT B, BRAKE ROD ADJUSTING 1
14 957010603200 BOLT, FLANGE, 6X32 1
15 957020603200 BOLT, FLANGE, 6X32 1
16 45100K55950ZA *NH303M* MAT AXIS GRAY METALLIC 1
