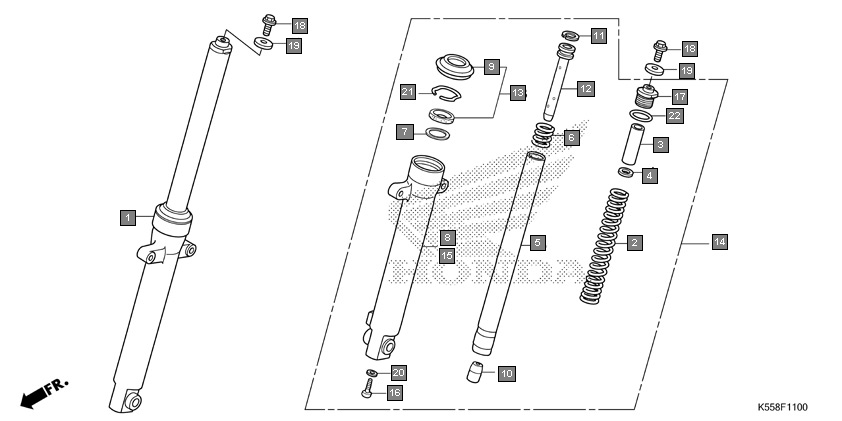

Motorcycles Livo CBF110J Frame Front fork
Ref.No. Part No. Description Oty
1 51400K55901 FORK ASSY, R FR(ETPL) 1
2 51401K23902 SPRING, FR. FORK(ENDURANCE) 2
3 51403K23902 COLLAR, SPRING 2
4 51404K23902 JOINT, SPRING 2
5 51410K23902 PIPE COMP., FR. FORK (ENDURANCE) 2
6 51412K23902 SPRING, REBOUND 2
7 51413K23902 RING, BACK UP 2
8 51413K63D11 RING, BACK UP 1
9 51420K55602 CASE, R. FR. BOTTOM(ETPL) 1
10 51425K23902 DUST SEAL(ENDURANCE) 2
11 51432K23902 PIECE, OIL LOCK 2
12 51437K23902 RING, PISTON 2
13 51440K23902 PIPE, SEAT 2
14 51490K23902 SEAL SET, FR. FORK 2
15 51500K55901 FORK ASSY, L FR(ETPL) 1
16 51520K55602 CASE, L. FR. BOTTOM(ETPL) 1
17 90116K23902 BOLT, SOCKET, 8MM 1
18 90123K23902 BOLT A, FR. FORK 2
19 90123KRM860 BOLT, FR. FORK 2
20 90521KSP900 WASHER, 10.3MM 2
21 90544K23902 WASHER, SPECIAL, 8MM 2
22 90651K23902 RING, OIL SEAL STOP 2
23 91351K23902 O-RING 2
