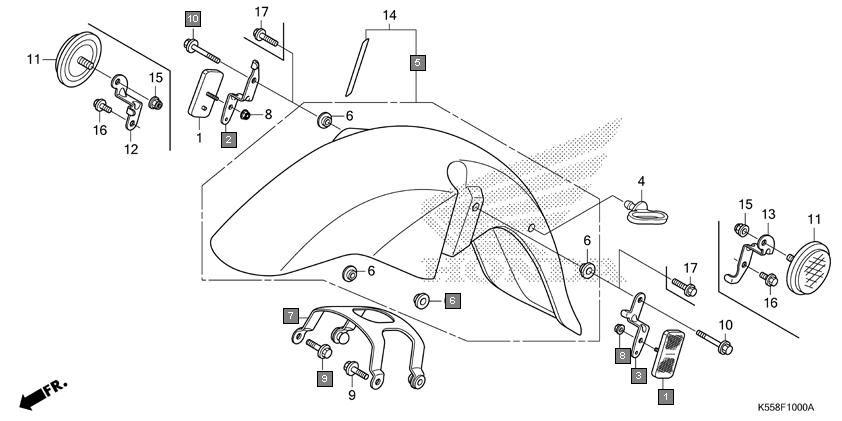

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 33740KZK951 | REFLECTOR, FR. SIDE REFLEX | 2 |
2 | 33742K55600 | STAY, R. FR. REFLECTOR | 1 |
3 | 33743K55600 | STAY, L. FR. REFLECTOR | 1 |
4 | 45451KTE600 | GUIDE, FR. FENDER CABLE | 1 |
5 | 61100K55600ZE | FENDER, FR. *NH1 1*.................BLACK | 1 |
6 | 61100K55600ZA | FENDER, FR. *YR333M* SUNSET BROWN METALLIC | 1 |
7 | 61100K55600ZB | FENDER, FR. *PB396M* ATHLETIC BULE METALLIC | 1 |
8 | 61100K55600ZF | FENDER, FR. *R355M*.IMPERIAL RED METALLIC | 1 |
9 | 61100K55600ZC | FENDER, FR. *NH1* BLACK | 1 |
10 | 61100K55600ZD | FENDER, FR. *NHB63P* PEARL AMAZING WHITE | 1 |
11 | 61100K55600ZG | FENDER, FR. *NH303M*. MAT AXIS GRAY METALLIC | 1 |
12 | 61101KCJ690 | COLLAR, FR. FENDER SETTING | 4 |
13 | 61102K55600 | STAY, FR. FENDER | 1 |
14 | 90301KWN901 | NUT, U, 5MM | 2 |
15 | 960010602000 | BOLT, FLANGE, 6X20 | 2 |
16 | 960010602800 | BOLT, FLANGE, 6X28 | 1 |
