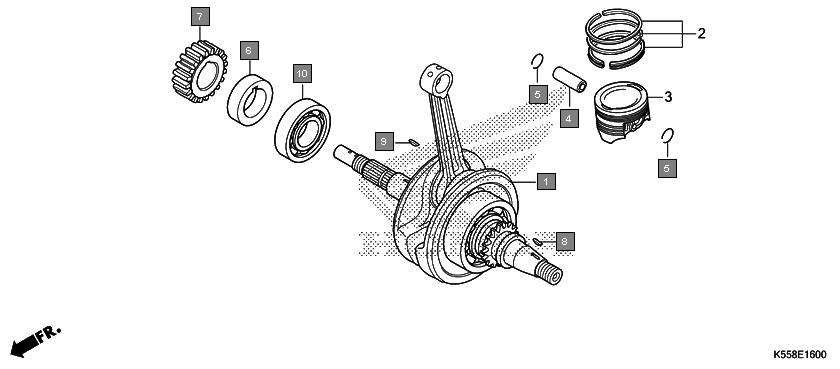

Motorcycles Livo CBF110J Engine Crankshaft/piston
Ref.No. Part No. Description Oty
1 13103K23900 PISTON(0.50) 1
2 13111KWS900 PIN, PISTON 1
3 13115K23900 CLIP, PISTON PIN, 12MM 2
4 13412KWS900 COLLAR, PRIMARY DRIVE GEAR 1
5 23121KWS900 GEAR, PRIMARY DRIVE(18T) 1
6 90741KFB000 KEY, WOODRUFF, 4MM 1
7 90741KGH900 KEY, WOODRUFF, 4MM 1
8 91001K14901 BEARING, RADIAL BALL, 63/22 (NEI) 1
9 91001K23902 BEARING, RADIAL BALL, 63/22 (SKF) 1
10 91001KWS901 BEARING, RADIAL BALL, 63/22 (NSK) 1
11 13000K63D30 CRANKSHAFT COMP. 1
