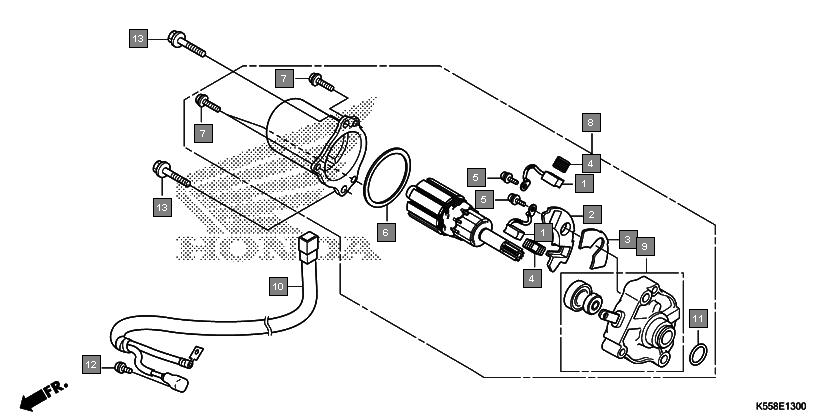

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 31201K55601 | BRUSH, CARBON | 2 |
2 | 31202K55601 | BRUSH HOLDER | 1 |
3 | 31203K55601 | INSULATOR | 1 |
4 | 31204K55601 | SPRING, BRUSH | 2 |
5 | 31205K55601 | SCREW, 4X6 | 2 |
6 | 31206K55601 | PACKING(MITSUBA) | 1 |
7 | 31207K55601 | SCREW-WASHER, 5X12 | 3 |
8 | 31210K55601 | MOTOR UNIT, STARTER(MITSUBA) | 1 |
9 | 31214K55601 | BRACKET COMP., FR. | 1 |
10 | 32105K23911 | SUB CORD, STARTER MOTOR (MITSUBA) | 1 |
11 | 91309K55601 | O-RING | 1 |
12 | 938920400808 | SCREW-WASHER, 4X8 | 1 |
13 | 960010603200 | BOLT, FLANGE, 6X32 | 2 |
