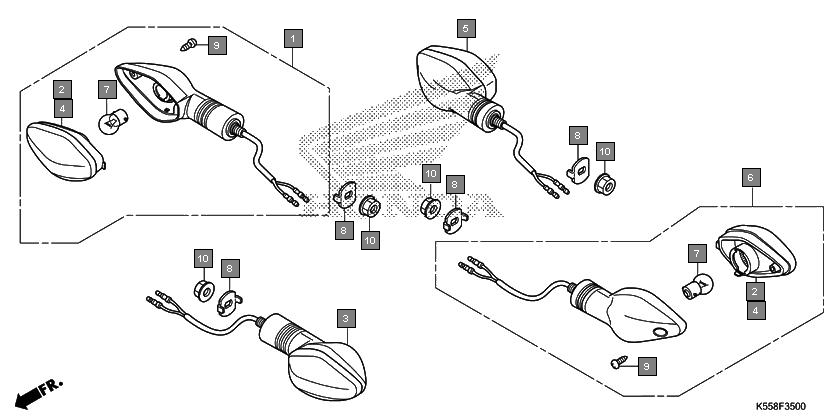

Motorcycles Livo CBF110SH Frame Winker
Ref.No. Part No. Description Oty
1 33400K18901 WINKER ASSY., R. FR.(12V 10W) 1
2 33403KWS901 LENS COMP., R.(R. FR./L. RR.) 2
3 33450KTE601 WINKER ASSY., L. FR.(12V 10W) 1
4 33453KWS901 LENS COMP., L.(L. FR./R. RR.) 2
5 33600K14901 WINKER ASSY., R. RR.(12V 10W) 1
6 33650K14901 WINKER ASSY., L. RR.(12V 10W) 1
7 34930KWA930 BULB, WINKER(12V 10W)(AMBER) 4
8 61315GGJ700 STAY, WINKER 4
9 9390134380 SCREW, TAPPING, 4X12 4
10 9405010000 NUT, FLANGE, 10MM 4
