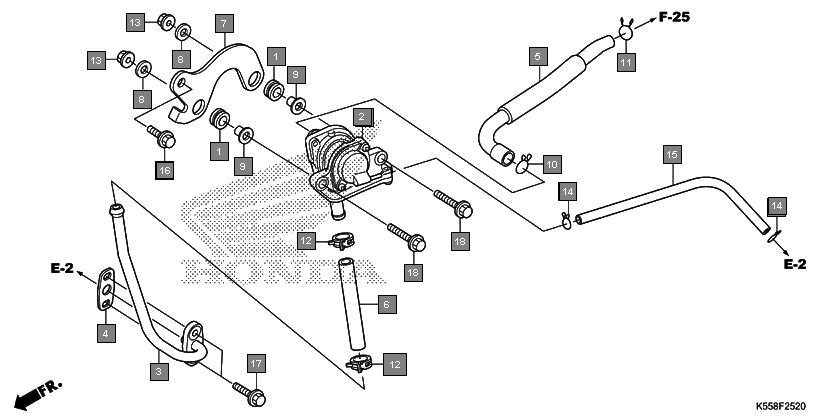

Motorcycles Livo CBF110SH Frame Air suction valve
Ref.No. Part No. Description Oty
1 17622GB7900 RUBBER, CUSHION 2
2 18600K23933 VALVE ASSY., AIR SUCTION (MIKUNI) 1
3 18640K14900 PIPE COMP., AIR FEED 1
4 18645KPHC00 GASKET, AIR FEED PIPE 1
5 18651K14900 TUBE A, AIR SUCTION VALVE 1
6 18652KZAW00 TUBE B, AIR SUCTION VALVE 1
7 50535KZAW00 BRACKET, AIR SUCTION VALVE 1
8 90450ZA0000 WASHER, PLAIN, 6X16 2
9 90501KC2750 WASHER, REGULATOR SETTING 2
10 90651K14900 CLIP, TUBE(B15) 1
11 90651MK3780 CLIP, TUBE(B12.5) 1
12 90651KWPF00 CLIP, TUBE(B7) 2
13 18600K23901 VALVE ASSY., AIR SUCTION 1
14 90678K14600 CLIP, HOSE 2
