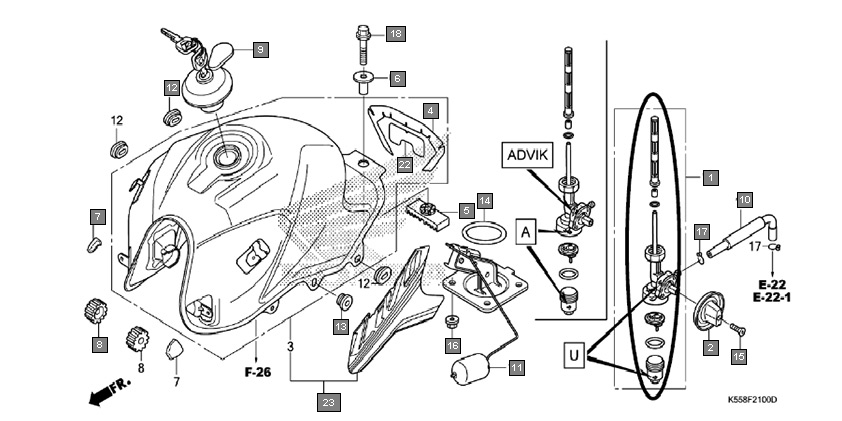

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 17500K55900ZB | TANK ASSY, FUEL(WL) *R355M*IMPERIAL RED METALLIC | 1 |
2 | 17500K55900ZF | TANK ASSY, FUEL*NHB63P*PEARL AMAZING WHITE | 1 |
3 | 17500K55900ZA | TANK ASSY, FUEL *YR333M*SUNSET BROWN METALLIC | 1 |
4 | 17500K55900ZD | TANK ASSY, FUEL *NH303M*MAT AXIS GRAY METALLIC | 1 |
5 | 17500K55900ZC | TANK ASSY, FUEL(WL) *PB396M*ATHLETIC BLUE METALLIC | 1 |
6 | 17500K55900ZE | TANK ASSY, FUEL(WL)*NH1*BLACK | 1 |
7 | 17620KTED03 | CAP COMP., FUEL FILLER (JAY USHIN) | 1 |
8 | 37800K55901 | FUEL UNIT | 1 |
