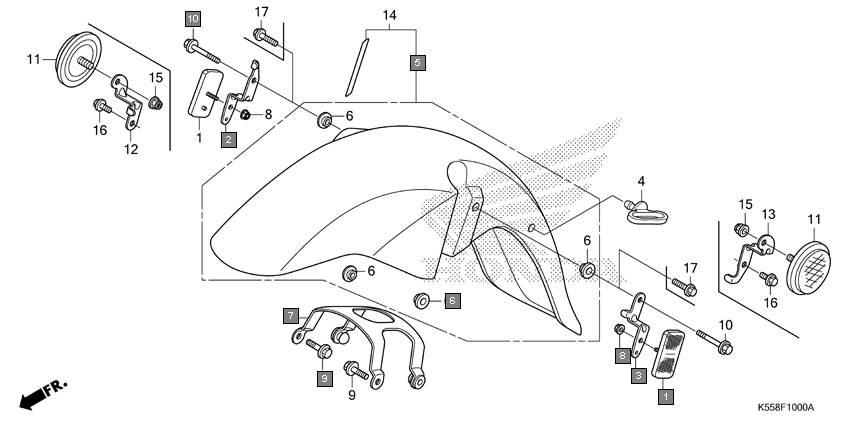

Motorcycles Livo CBF110SH Frame Front fender
Ref.No. Part No. Description Oty
1 33740KZK951 REFLECTOR, FR. SIDE REFLEX 2
2 33742K55600 STAY, R. FR. REFLECTOR 1
3 33743K55600 STAY, L. FR. REFLECTOR 1
4 45451KTE600 GUIDE, FR. FENDER CABLE 1
5 61100K55600ZE FENDER, FR. *NH1 1*.................BLACK 1
6 61100K55600ZA FENDER, FR. *YR333M* SUNSET BROWN METALLIC 1
7 61100K55600ZB FENDER, FR. *PB396M* ATHLETIC BULE METALLIC 1
8 61100K55600ZF FENDER, FR. *R355M*.IMPERIAL RED METALLIC 1
9 61100K55600ZD FENDER, FR. *NHB63P* PEARL AMAZING WHITE 1
10 61100K55600ZC FENDER, FR. *NH1* BLACK 1
11 61100K55600ZG FENDER, FR. *NH303M*. MAT AXIS GRAY METALLIC 1
12 61101KCJ690 COLLAR, FR. FENDER SETTING 4
13 61102K55600 STAY, FR. FENDER 1
14 90301KWN901 NUT, U, 5MM 2
15 960010602000 BOLT, FLANGE, 6X20 2
16 960010602800 BOLT, FLANGE, 6X28 2
