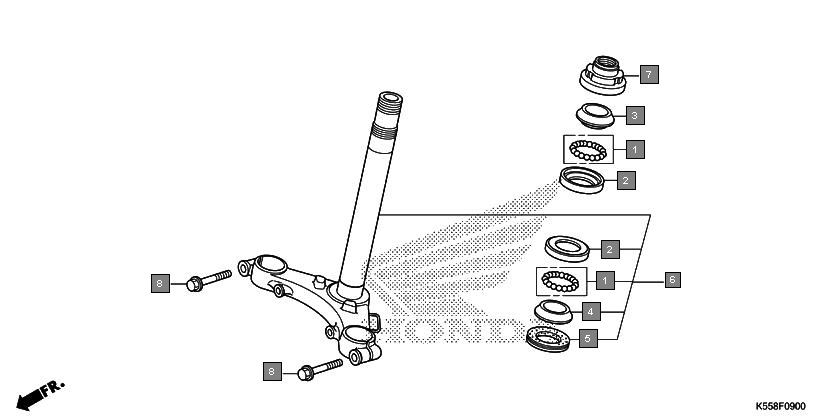

Motorcycles Livo CBF110SH Frame Steering stem
Ref.No. Part No. Description Oty
1 06531KW6840 BALL ASSY., STEEL, #8X18 2
2 50301K21900 RACE, STEERING BALL 2
3 50301KTR900 RACE, STEERING TOP BALL 2
4 53211268010 RACE, STEERING TOP CONE 1
5 53211K21900 RACE, STEERING TOP CONE 1
6 53212200000 RACE, STEERING BOTTOM CONE 1
7 53212K21900 RACE, STEERING BOTTOM CONE 1
8 53214200000 DUST SEAL, STEERING HEAD 1
9 53219K55910 STEM SUB ASSY, STEERING 1
10 53220KSP900 THREAD COMP., STEERING HEAD TOP 1
11 957010803507 BOLT, FLANGE, 8X35 2
12 957020803507 BOLT, FLANGE, 8X35 2
