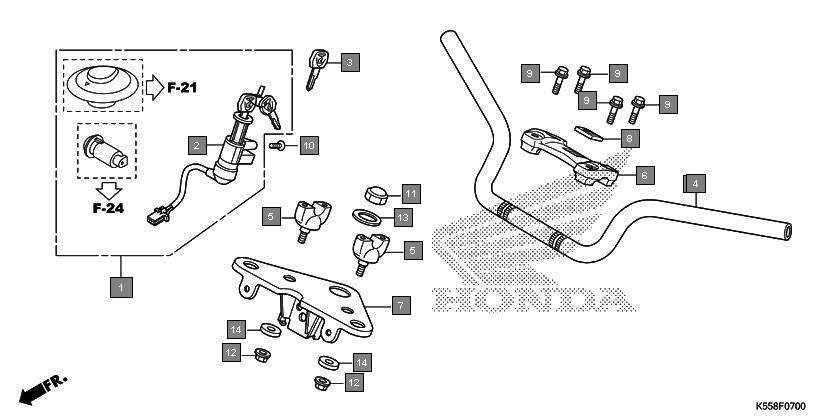

Motorcycles Livo CBF110SH Frame Handle pipe/top bridge
Ref.No. Part No. Description Oty
1 35010K14900 KEY SET(JAY USHIN) 1
2 35010K14931 KEY SET(MINDA) 1
3 35100K14901 SWITCH ASSY., COMBINATION & LOCK(JAY USHIN) 1
4 35100K14931 SWITCH ASSY., COMBINATION & LOCK(MINDA) 1
5 35121K14930 KEY, BLANK(MINDA) 1
6 35121KWS900 KEY, BLANK(JAY USHIN) 1
7 53100K55600ZA PIPE, STEERING HANDLE *NH1* BLACK 1
8 53100K55600ZB PIPE, STEERING HANDLE *NH105*...MAT BLACK (#15-#20) 1
9 35010K63D30 KEY SET 1
10 53130KTE910 HOLDER, HANDLE UNDER 2
11 53131KWF900ZA HOLDER, HANDLE UPPER *NH303M* MAT AXIS GRAY METALLIC 1
12 53230K23900ZA BRIDGE COMP., FORK TOP *NH105* MAT BLACK 1
13 90304K63D30 NUT, STEERING STEM 1
14 86150KPG901 EMBLEM, PRODUCT(MARUI) 1
15 90117383000 BOLT, FLANGE, 6X28 4
16 90164KPL900 SCREW, U-LOCK FLAT, 6X12 2
17 90304KSP900 NUT, STEERING STEM 1
18 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 2
19 90503KSP900 WASHER, STEERING STEM 1
20 90521427770 WASHER, 10.3MM 2
