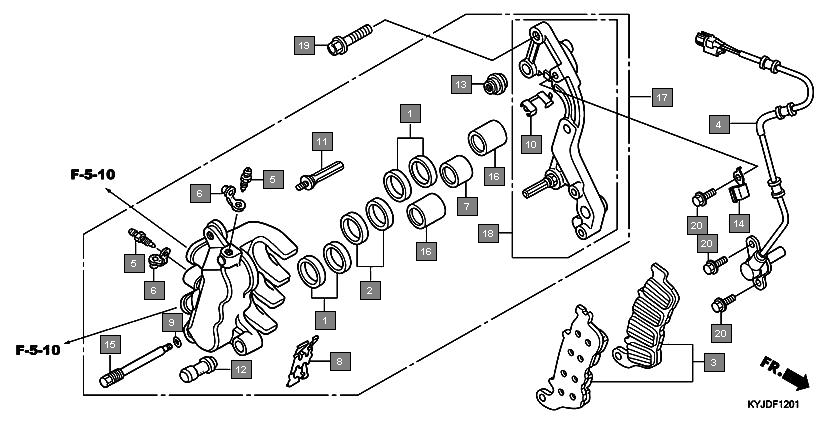

Motorcycles CBR250R CBR250RAH Frame Front brake caliper(cbr250ra)
Ref.No. Part No. Description Oty
1 06431MA3405 SEAL SET, PISTON 2
2 06451MZ2405 SEAL SET, PISTON 1
3 06455KYJ912 PAD SET, FR 1
4 43352568003 SCREW, BLEEDER(NISSIN) 2
5 43353461771 CAP, BLEEDER 2
6 45107MAJG41 PISTON A, 22X27 1
7 45108KYJ911 SPRING, PAD 1
8 45111MAJG41 RING, STOPPER 1
9 45112MZ2006 RETAINER, BRACKET 1
10 45131ML7921 BOLT A, PIN 1
11 45132166016 BOOT, PIN BUSH(NISSIN) 1
12 45133MA3006 BOOT B 1
13 45161KYJ610 CLAMPER, SENSOR CORD 1
14 45215MBTD51 PIN, HANGER 1
15 45218MAJG41 PISTON B, 27X35 2
16 45250KYJ911 CALIPER SUB ASSY., R. FR. 1
17 45250KYJG91 CALIPER SUB ASSY., R. FR. 1
18 45290MERR81 BRACKET SUB ASSY., R. FR. 1
19 90131KYJ710 BOLT, FLANGE, 8X32 2
20 960010601007 BOLT, FLANGE, 6X10 3
