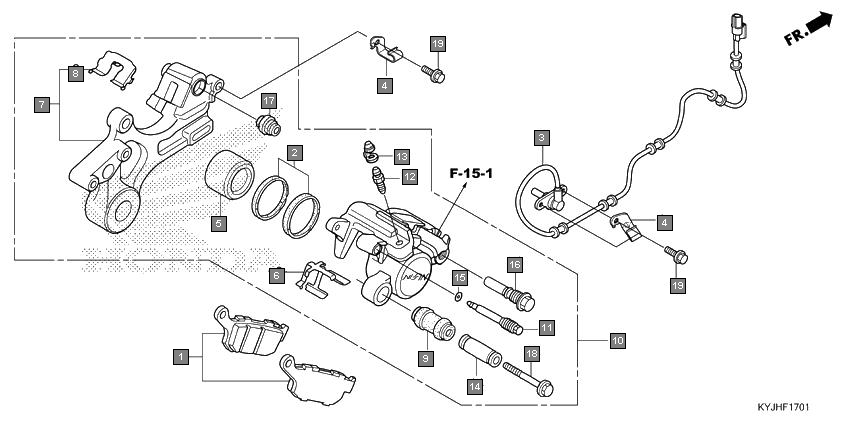

Motorcycles CBR250R CBR250RAH Frame Rear brake caliper(cbr250ra)
Ref.No. Part No. Description Oty
1 06435KYJ901 PAD SET, RR. 1
2 06451443405 SEAL SET, PISTON 1
3 38510KYJ911 SENSOR, RR. WHEEL SPEED 1
4 38517KYJ910 CLAMPER, SPEED SENSOR CORD 2
5 43107KT7761 PISTON 1
6 43108MBB006 SPRING, PAD 1
7 43110KFK631 BRACKET COMP., RR. 1
8 43112KT7761 RETAINER 1
9 43132KT7761 BOOT, SLEEVE 1
10 43150KYJ911 CALIPER SUB ASSY., RR. 1
11 43215KZ4J41 PIN, HANGER 1
12 43352568003 SCREW, BLEEDER(NISSIN) 1
13 43353461771 CAP, BLEEDER 1
14 45111MA3006 SLEEVE 1
15 45111MAJG41 RING, STOPPER 1
16 45131MN9006 BOLT, PIN 1
17 45133MA3006 BOOT B 1
18 90180MN8006 BOLT, FLANGE, 8X49 1
19 960010601007 BOLT, FLANGE, 6X10 3
