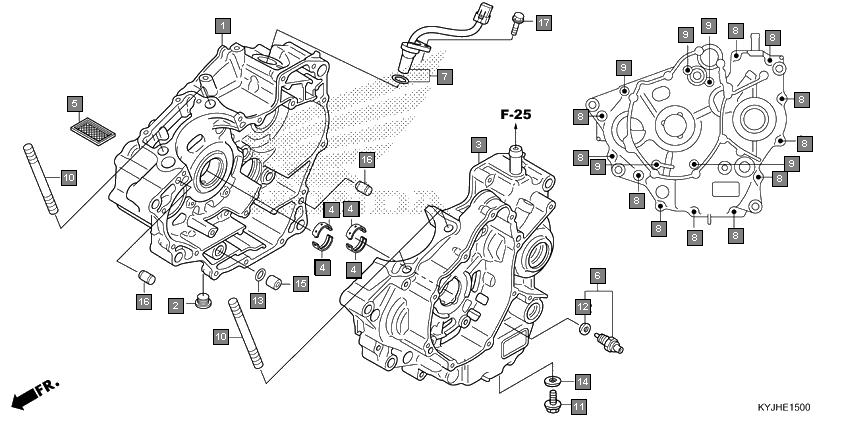

Motorcycles CBR250R CBR250RAH Engine Crankcase
Ref.No. Part No. Description Oty
1 11100KYJ900 CRANKCASE COMP., R. 1
2 11107KYJ900 BOLT, SEALING, 16MM 1
3 11200KYJ900 CRANKCASE COMP., L. 1
4 13318KYJ305 BEARING G, CRANKSHAFT(PINK) (O.S.) 4
5 13312KYJ901 BEARING A, CRANKSHAFT(BLUE) 4
6 13313KYJ901 BEARING B, CRANKSHAFT(BLACK) 4
7 13316KYJ305 BEARING E, CRANKSHAFT(GREEN) (O.S.) 4
8 13314KYJ901 BEARING C, CRANKSHAFT(BROWN) 4
9 13317KYJ305 BEARING F, CRANKSHAFT(YELLOW) (O.S.) 4
10 13315KYJ305 BEARING D, CRANKSHAFT(RED) (O.S.) 4
11 15421KYJ900 SCREEN, OIL FILTER 1
12 35600425023 SWITCH ASSY., NEUTRAL 1
13 37700KYJ901 SENSOR ASSY., SPEED 1
14 90014KYJ900 BOLT, FLANGE, 6X40(NSHF) 11
15 90016KYJ900 BOLT, FLANGE, 6X70(NSHF) 5
16 90032KYJ900 BOLT, STUD, 10X178 4
17 90131KRM840 BOLT, DRAIN PLUG, 12MM 1
18 90443KR0000 WASHER, NEUTRAL SWITCH 1
19 91301KYJ710 O-RING, 11.8X1.9 1
20 9410912000 WASHER, DRAIN PLUG, 12MM 1
21 9430112160 PIN A, DOWEL, 12X16 1
22 9430208140 PIN B, DOWEL, 8X14 2
23 957010601800 BOLT, FLANGE, 6X18 1
