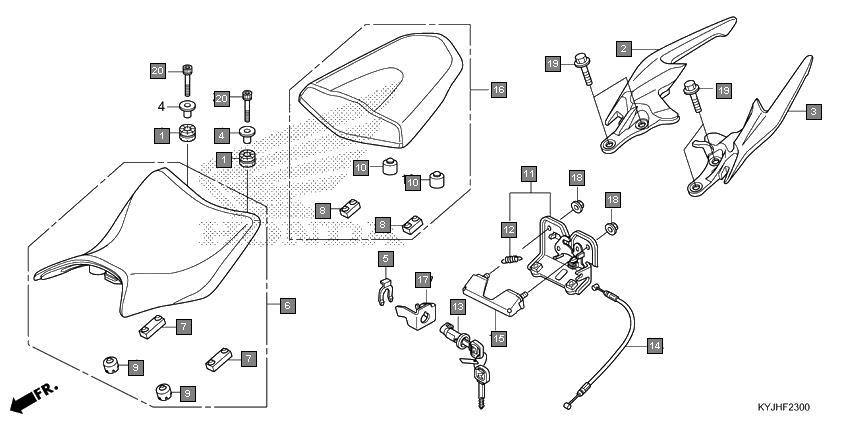

Motorcycles CBR250R CBR250RH Frame Seat
Ref.No. Part No. Description Oty
1 33705KW7900 RUBBER A, TAILLIGHT MOUNTING 2
2 50315KYJ710ZA GRIP, R. RR. *NH303M* MAT AXIS GRAY METALLIC 1
3 50325KYJ710ZA GRIP, L. RR. *NH303M* MAT AXIS GRAY METALLIC 1
4 61104428730 COLLAR, FR. FENDER(BLACK)..... (FOR RR.) 2
5 61104428010 COLLAR, FR. FENDER(WHITE)..... (FOR RR.) 2
6 75581GN8920 SPRING, LOCK KEY SETTING 1
7 77100KYJ711 SEAT COMP., SINGLE 1
8 77205286000 RUBBER B, SEAT SETTING 2
9 77205KPPT00 RUBBER, SEAT SETTING 2
10 77206KPPT00 RUBBER, SEAT CUSHION 2
11 77207KYJ900 RUBBER, SEAT CUSHION 2
12 77220KYJ900 LOCK COMP., SEAT 1
13 77234GN2000 SPRING, SEAT LOCK 1
14 77239KYJT01 KEY, SEAT LOCK 1
15 77240KYJ900 CABLE, SEAT LOCK 1
16 77250KYJ900 COVER, SEAT LOCK 1
17 77300KYJ711 SEAT COMP., PILLION 1
18 77582KPPT00 STAY, SEAT LOCK CABLE 1
19 9405006080 NUT, FLANGE, 6MM 2
20 957010802000 BOLT, FLANGE, 8X20 4
21 966000602508 BOLT, SOCKET, 6X25 2
