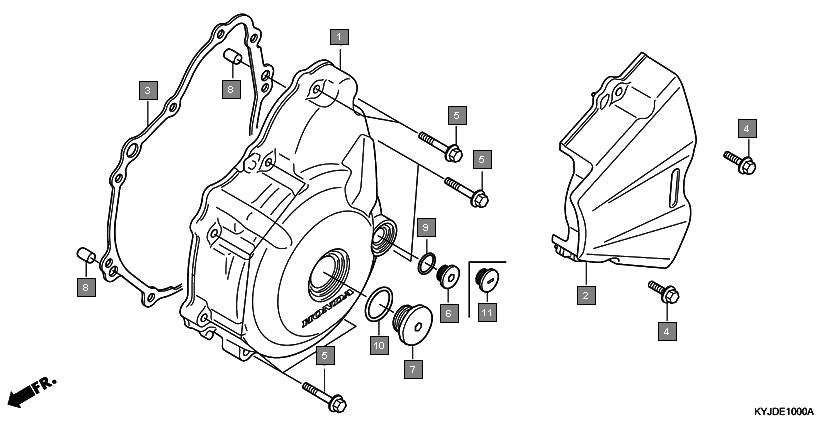

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 11341KYJL80 | COVER, L. CRANKCASE | 1 |
2 | 11360KYJ900 | COVER COMP., L. RR. | 1 |
3 | 11395KYJ900 | GASKET, L. CRANKCASE COVER | 1 |
4 | 90012KYJ900 | BOLT, FLANGE, 6X25(NSHF) | 2 |
5 | 90013KYJ900 | BOLT, FLANGE, 6X30(NSHF) | 9 |
6 | 90084KYJ710 | CAP, 14MM | 1 |
7 | 90087KYJ710 | CAP, 30MM | 1 |
8 | 9430208140 | PIN B, DOWEL, 8X14 | 2 |
9 | 91303377000 | O-RING, 13.8X2.5 | 1 |
10 | 91356KGH901 | O-RING, 30MM | 1 |
11 | 90084KPP860 | CAP, A.C. GENERATOR | 1 |
