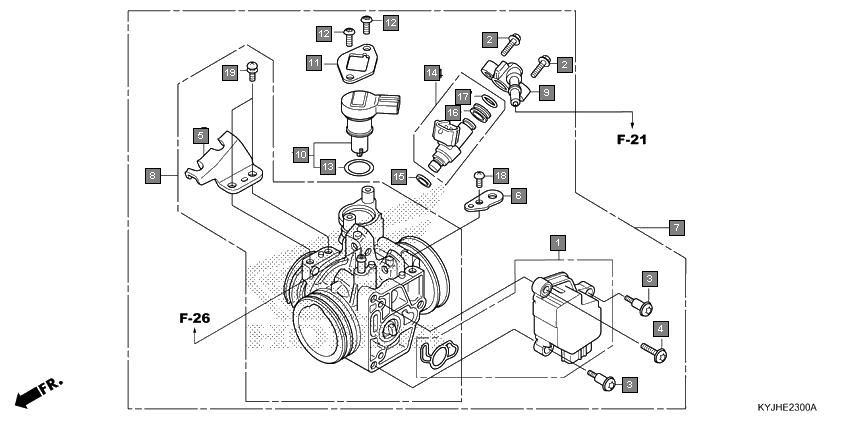

Motorcycles CBR250R CBR250RH Engine Throttle body
Ref.No. Part No. Description Oty
1 16060KYJ901 SENSOR SET 1
2 16080KPH701 BOLT, FLANGE, 5X20 2
3 16081KYJ901 SCREW, TORX, 5X8.7 2
4 16082KYJ901 SCREW, TORX, 5X17 1
5 16169MFR671 STAY, WIRE 1
6 16196HP6A01 STAY, HARNESS CLAMPER 1
7 16400KYJ902 THROTTLE BODY ASSY.(GQ9JA B) 1
8 16410KYJ902 BODY SET 1
9 16422HP5602 JOINT, INJECTOR 1
10 16430KYJ901 VALVE SET, IDLE AIR CONTROL 1
11 16432HP5601 PLATE, IDLE AIR CONTROL VALVE 1
12 16433HN8A61 SCREW, TORX 2
13 16435HN8A61 O-RING, 17.8X1.9 1
14 16450MFE641 INJECTOR ASSY., FUEL 1
15 16472MCW000 SEAL RING, INJECTOR 1
16 16473P7A004 CUSHION RING, INJECTOR 1
17 91301P7A004 O-RING, 7.8X1.9 1
18 93500050101H SCREW, PAN, 5X10 1
19 938920501218 SCREW-WASHER, 5X12 2
