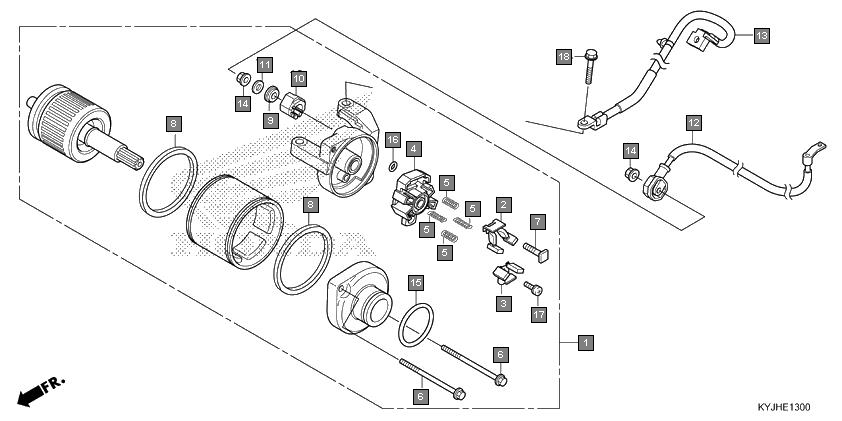

Motorcycles CBR250R CBR250RH Engine Starting motor
Ref.No. Part No. Description Oty
1 31200KYJ902 MOTOR ASSY., STARTER(MITSUBA) 1
2 31201MEW921 BRUSH SET A, CARBON 1
3 31202MEW921 BRUSH SET B, CARBON 1
4 31203MEW921 HOLDER, BRUSH 1
5 31204MEW921 SPRING, CARBON BRUSH 4
6 31205HP5601 BOLT, SETTING 2
7 31206MEW921 BOLT, TERMINAL 1
8 31207HP5601 RING 2
9 31208MEW921 INSULATOR 1
10 31209MEW921 STOPPER, TERMINAL 1
11 31210MEW921 WASHER 1
12 32410KYJ900 CABLE, STARTER MOTOR 1
13 32601KYJ900 CABLE, BATTERY EARTH 1
14 90071MB0000 NUT-WASHER, 6MM 2
15 91309425003 O-RING, 24.4X3.1(ARAI) 1
16 91320MB0000 O-RING, 4X2 1
17 938920501208 SCREW-WASHER, 5X12 1
18 957010602500 BOLT, FLANGE, 6X25 2
