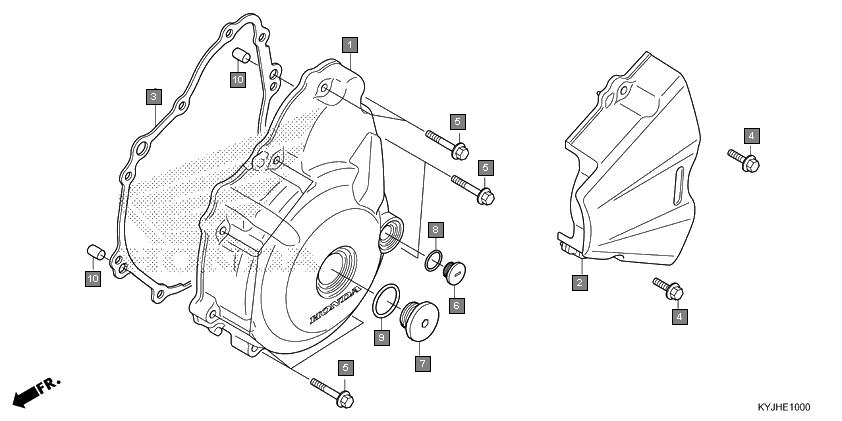

Motorcycles CBR250R CBR250RH Engine Left crankcase cover
Ref.No. Part No. Description Oty
1 11341KYJL80 COVER, L. CRANKCASE 1
2 11360KYJ900 COVER COMP., L. RR. 1
3 11395KYJ900 GASKET, L. CRANKCASE COVER 1
4 90012KYJ900 BOLT, FLANGE, 6X25(NSHF) 2
5 90013KYJ900 BOLT, FLANGE, 6X30(NSHF) 9
6 90084KPP860 CAP, A.C. GENERATOR 1
7 90087KYJ710 CAP, 30MM 1
8 91303377000 O-RING, 13.8X2.5 1
9 91356KGH901 O-RING, 30MM 1
10 9430208140 PIN B, DOWEL, 8X14 2
