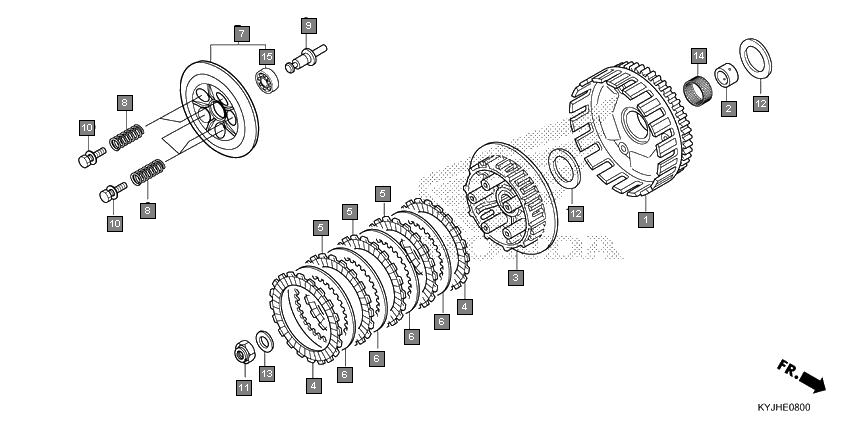

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 22100KYJ711 | OUTER COMP., CLUTCH(18T) | 1 |
2 | 22116KYJ900 | GUIDE, CLUTCH OUTER | 1 |
3 | 22121KYJ711 | CENTER, CLUTCH | 1 |
4 | 22201HM3A60 | DISK, CLUTCH FRICTION | 2 |
5 | 22201KYJ711 | DISK, CLUTCH FRICTION | 3 |
6 | 22321ML7000 | PLATE, CLUTCH | 4 |
7 | 22350KYJ711 | PLATE COMP., CLUTCH PRESSURE | 1 |
8 | 22401KYJ711 | SPRING, CLUTCH | 5 |
9 | 22847KYJ712 | PIN, CLUTCH LIFTER | 1 |
10 | 90050KYJ711 | BOLT-WASHER, 6X25 | 5 |
11 | 90201KYJ900 | NUT, SPECIAL, 16MM | 1 |
12 | 90404KVK900 | WASHER, 20X40X2 | 2 |
13 | 90434KPS900 | WASHER, 16MM | 1 |
14 | 91012KYJ711 | BEARING, NEEDLE, 28X33X16.8 | 1 |
15 | 961006001000 | BEARING, RADIAL BALL, 6001 | 1 |
