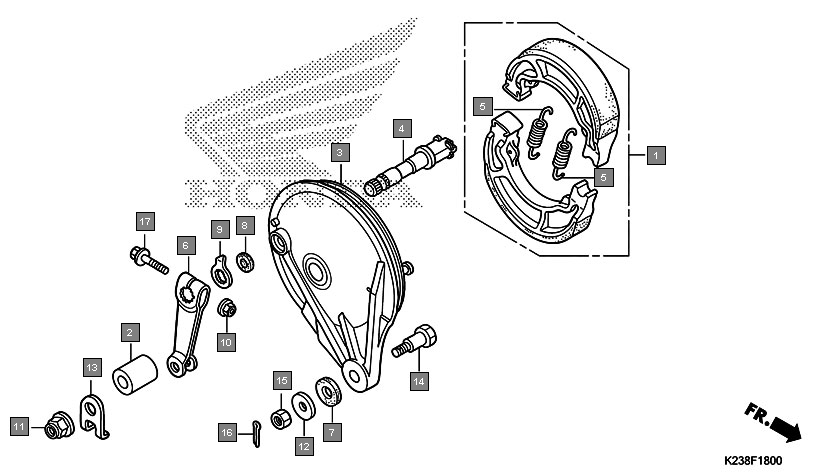

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 06430KTN700 | SHOE SET, BRAKE(JB) | 1 |
| 2 | 06430KVTD10 | SHOE SET, BRAKE(ASK) | 1 |
| 3 | 42313K14900 | COLLAR, RR. BRAKE PANEL SIDE | 1 |
| 4 | 43100KTE950ZA | PANEL COMP., RR. BRAKE *NH303M* MAT AXIS GRAY METALLIC | 1 |
| 5 | 43141KTC900 | CAM, RR. BRAKE | 1 |
| 6 | 43151329000 | SPRING, BRAKE SHOE (ASK) | 2 |
| 7 | 45133KCC900 | SPRING, FR. BRAKE SHOE (FOR RR.) | 2 |
| 8 | 45133KPL900 | SPRING, FR.BRAKE SHOE (ASK)(FOR RR.) | 2 |
| 9 | 43410KZAW00 | ARM, RR. BRAKE | 1 |
| 10 | 43434ME1670 | RUBBER, STOPPER ARM | 1 |
| 11 | 45134250000 | DUST SEAL, BRAKE CAM | 1 |
| 12 | 45145KFM900 | INDICATOR, FR. BRAKE (FOR RR.) | 1 |
| 13 | 90302KST942 | NUT, FLANGE, 6MM (LEO FASTENERS) | 1 |
| 14 | 90302KTE911 | NUT, FLANGE SPECIAL, 6MM (SIMMONDS MARSHALL) | 1 |
| 15 | 90306KTE911 | NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) | 1 |
| 16 | 90505425000 | WASHER, 8MM | 1 |
| 17 | 90558KTR900 | WASHER, RR. AXLE | 1 |
| 18 | 9281110000 | BOLT A, BRAKE STOPPER | 1 |
| 19 | 94001080000S | NUT, HEX., 8MM | 1 |
| 20 | 9420120150 | PIN, SPLIT, 2.0X15 | 1 |
| 21 | 957010603500 | BOLT, FLANGE, 6X35 | 1 |
| 22 | 957020603500 | BOLT, FLANGE, 6X35 | 1 |
