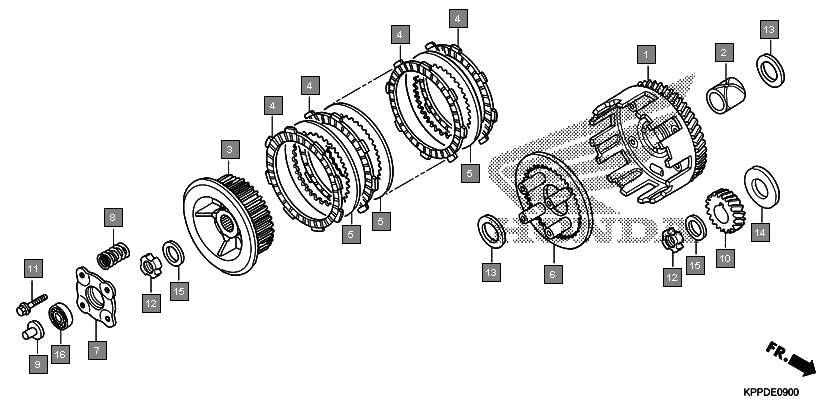

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 22100KPPT00 | OUTER COMP., CLUTCH(75T) | 1 |
| 2 | 22105KBA900 | GUIDE, CLUTCH OUTER | 1 |
| 3 | 22120KPPN00 | CENTER, CLUTCH | 1 |
| 4 | 22201KGH600 | DISK, CLUTCH FRICTION | 5 |
| 5 | 22321KGH600 | PLATE, CLUTCH | 4 |
| 6 | 22355KGH600 | PLATE, CLUTCH PRESSURE | 1 |
| 7 | 22361KGH600 | PLATE, CLUTCH LIFTER | 1 |
| 8 | 22401KPP900 | SPRING, CLUTCH | 4 |
| 9 | 22849KGH900 | ROD, CLUTCH LIFTER | 1 |
| 10 | 23121KPP900 | GEAR A, PRIMARY DRIVE(23T)(WHITE) | 1 |
| 11 | 23122KPP900 | GEAR B, PRIMARY DRIVE(23T) (BLUE) | 1 |
| 12 | 23123KPP900 | GEAR C, PRIMARY DRIVE(23T)(YELLOW) | 1 |
| 13 | 90008KT7000 | BOLT, FLANGE, 6X25 | 4 |
| 14 | 90231KM7700 | NUT, LOCK, 14MM | 2 |
| 15 | 90401KY4901 | WASHER, PLAIN, 17MM | 2 |
| 16 | 90434KGH900 | WASHER, 20MM | 1 |
| 17 | 90501GBL730 | WASHER, 14MM | 2 |
| 18 | 91007KE1003 | BEARING, RADIAL BALL, 6903 | 1 |
