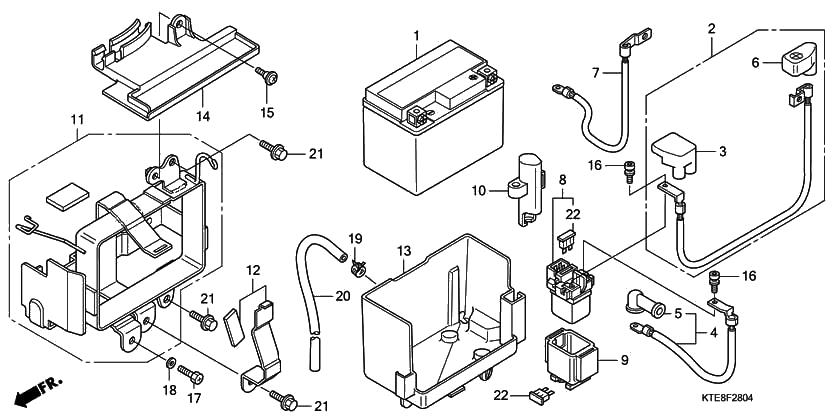

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 31500KWS901 | BATTERY ASSY.(ETZ3)(EXIDE) | 1 |
2 | 31500KVT941 | BATTERY ASSY.(ETZ4)(EXIDE) | 1 |
3 | 32401KTEA21 | CABLE, STARTER MAGNETIC BATTERY | 1 |
4 | 32406KAZ010 | COVER, STARTER MAGNETIC TERMINAL | 1 |
5 | 32410KTEA20 | CABLE, STARTER MOTOR | 1 |
6 | 32411253000 | COVER, STARTER MOTOR TERMINAL | 1 |
7 | 32417KRE900 | COVER, BATTERY TERMINAL | 1 |
8 | 32601KTEA20 | CABLE, BATTERY EARTH | 1 |
9 | 35850KEB620 | SWITCH ASSY., STARTER MAGNETIC | 1 |
10 | 35856KTE930 | RUBBER, SHOCK | 1 |
11 | 38201KTE930 | HOLDER, FUSE | 1 |
12 | 50380KTEA00 | BOX COMP., BATTERY | 1 |
13 | 50380KTEA20 | BOX COMP., BATTERY | 1 |
14 | 50381KTEA00 | BAND, BATTERY | 1 |
15 | 50385KTEA00 | TRAY, BATTERY | 1 |
16 | 50386KTEA00 | COVER, BATTERY | 1 |
17 | 90101GE0000 | SCREW, HINGE PATCH | 1 |
18 | 90111MR5000 | BOLT, SOCKET, 5X9 | 2 |
19 | 92301060120A | BOLT, RECESSED, 6X12 | 1 |
20 | 9410106800 | WASHER, PLAIN, 6MM | 1 |
21 | 950024085008 | CLAMP, TUBE(D8.5) | 1 |
22 | 950055043030 | TUBE, 5X430(95005-50001-30M) | 1 |
23 | 957010601000 | BOLT, FLANGE, 6X10 | 3 |
24 | 957020601000 | BOLT, FLANGE, 6X10 | 3 |
25 | 9820032000 | FUSE, BLADE(20A) | 2 |
