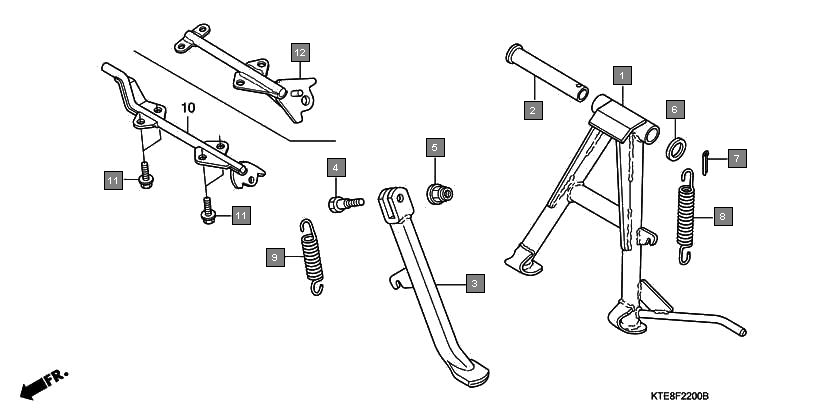

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 50500KTE911 | STAND COMP., MAIN | 1 |
2 | 50526KTE910 | SHAFT, MAIN STAND PIVOT | 1 |
3 | 50530KTE910 | BAR COMP., SIDE STAND | 1 |
4 | 90107GN1010 | SCREW, SIDE STAND PIVOT | 1 |
5 | 90304KTE911 | NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) | 1 |
6 | 90521028000 | WASHER, 17X22 | 1 |
7 | 9420130300 | PIN, SPLIT, 3.0X30 | 1 |
8 | 9501471702 | SPRING G, MAIN STAND | 1 |
9 | 9501472102 | SPRING A, SIDE STAND | 1 |
