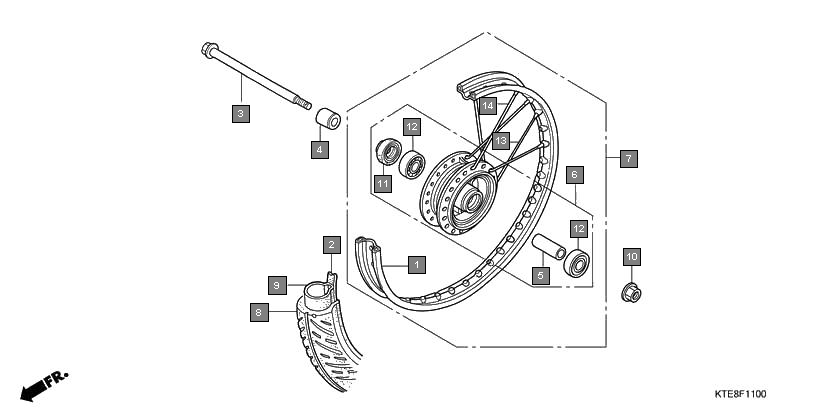

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 42701KTE910 | RIM, RR. WHEEL(FOR FR.) | 1 |
2 | 42713KSP901 | FLAP, TIRE(1.60/1.85-18) | 1 |
3 | 44301KPL900 | AXLE, FR. WHEEL | 1 |
4 | 44311KSP900 | COLLAR, FR. WHEEL SIDE | 1 |
5 | 44620KSP900 | COLLAR, FR. AXLE DISTANCE | 1 |
6 | 44635KTE910ZB | HUB SUB ASSY., FR. *NH1* BLACK | 1 |
7 | 44650KTE910ZB | WHEEL SUB ASSY., FR. *NH1* BLACK | 1 |
8 | 44711KFN852 | TIRE, FR.(2.75-18 42P) | 1 |
9 | 44712KFN852 | TUBE(2.75-18) | 1 |
10 | 90306KTE911 | NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) | 1 |
11 | 91251KPH901 | DUST SEAL, 21X37X7(ARAI) | 1 |
12 | 961406301010 | BEARING, RADIAL BALL, 6301U | 2 |
13 | 9733441166P0 | SPOKE SET A, 10X163(INSIDE) | 18 |
14 | 9760041165P0 | SPOKE SET A, 10X162.5(OUTSIDE) | 18 |
