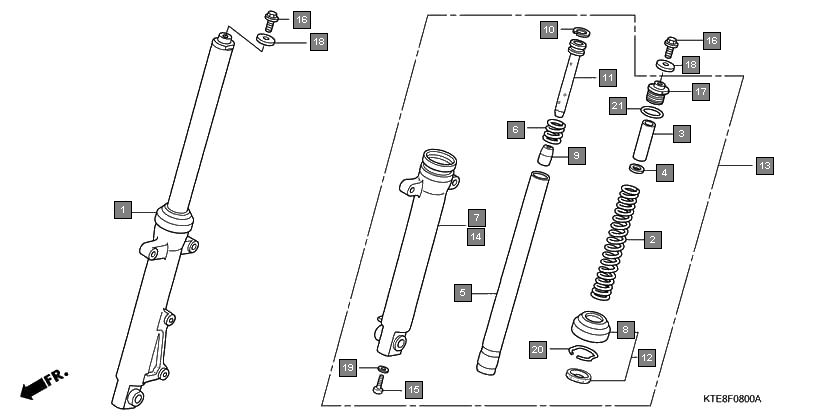

Motorcycles CB Shine CBF125CA Frame Front fork
Ref.No. Part No. Description Oty
1 51400KTEA11 FORK ASSY., R. FR.(SHOWA) 1
2 51400KTEA01 FORK ASSY., R. FR.(SHOWA) 1
3 51401KTEA01 SPRING, FR. FORK 2
4 51403KCC901 COLLAR, SPRING(SHOWA) 2
5 51403447731 PLATE, SPRING JOINT(SHOWA) 2
6 51410KTEA01 PIPE COMP., FR. FORK 2
7 51412KAG901 SPRING, REBOUND(SHOWA) 2
8 51420KTEA11 CASE, R. FR. BOTTOM 1
9 51420KTEA01 CASE, R. FR. BOTTOM 1
10 51425KST901 SEAL, DUST 2
11 51432KST901 PIECE, OIL LOCK 2
12 51437KTC901 RING, PISTON 2
13 51440KTE911 PIPE, SEAT 2
14 51490KST305 SEAL SET, FR. FORK 2
15 51500KTEA11 FORK ASSY., L. FR.(SHOWA) 1
16 51500KTEA01 FORK ASSY., L. FR.(SHOWA) 1
17 51520KTEA11 CASE, L. FR. BOTTOM 1
18 51520KTEA01 CASE, L. FR. BOTTOM 1
19 90116KAG901 BOLT, SOCKET, 8MM(SHOWA) 2
20 90123KRM860 BOLT, FR. FORK 2
21 90123KSP901 BOLT A, FR. FORK 2
22 90521KSP900 WASHER, 10.3MM 2
23 90544439930 PACKING(SHOWA) 2
24 90601GF5731 RING, OIL SEAL STOPPER(SHOWA) 2
25 91356KAG901 O-RING(SHOWA) 2
