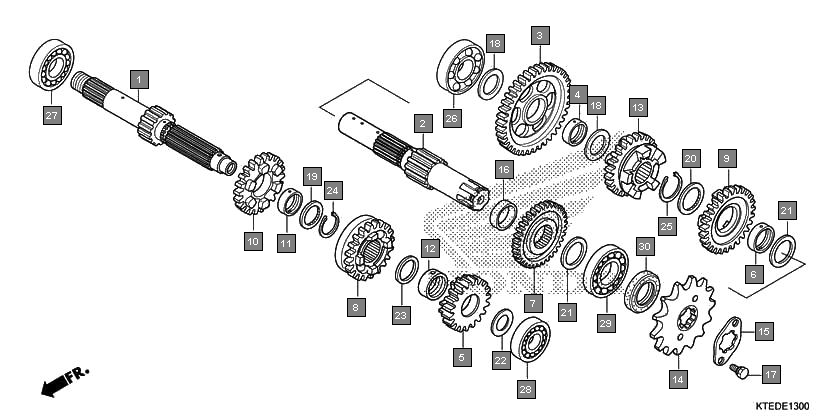

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 23210KTE910 | MAINSHAFT COMP., TRANSMISSION (12T) | 1 |
| 2 | 23220KTE910 | COUNTERSHAFT COMP. | 1 |
| 3 | 23421KTE600 | GEAR, COUNTERSHAFT LOW(41T) | 1 |
| 4 | 23427KRM840 | BUSH, 17X20.5X8.0 | 1 |
| 5 | 23431KTE600 | GEAR, MAINSHAFT SECOND(21T) | 1 |
| 6 | 23432KTE910 | BUSH, 20MM | 1 |
| 7 | 23441KTE600 | GEAR, COUNTERSHAFT SECOND(42T) | 1 |
| 8 | 23451KTE600 | GEAR, MAINSHAFT THIRD(20T) | 1 |
| 9 | 23461KTE600 | GEAR, COUNTERSHAFT THIRD(27T) | 1 |
| 10 | 23471KTE600 | GEAR, MAINSHAFT FOURTH(26T) | 1 |
| 11 | 23472KTE910 | BUSH, 17MM | 1 |
| 12 | 23473KTE910 | BUSH, 14.3MM | 1 |
| 13 | 23481KTE600 | GEAR, COUNTERSHAFT FOURTH(27T) | 1 |
| 14 | 23801KTE910 | SPROCKET, DRIVE(14T) | 1 |
| 15 | 23811KR3600 | PLATE A2, FIXING | 1 |
| 16 | 23911KTE910 | COLLAR, 25MM | 1 |
| 17 | 90084041000 | BOLT, DRIVE SPROCKET FIXING | 2 |
| 18 | 90452GB4770 | WASHER, THRUST, 17MM | 2 |
| 19 | 90452KRM840 | WASHER, SPLINE, 17X23X1.6 | 1 |
| 20 | 90453KRM840 | WASHER, SPLINE, 20MM | 1 |
| 21 | 90454KTE910 | WASHER, THRUST, 20MM | 2 |
| 22 | 90456KRM840 | WASHER, THRUST, 12MM | 1 |
| 23 | 90456KTE910 | WASHER, THRUST, 14.5MM | 1 |
| 24 | 90601KRM840 | CIRCLIP, 17MM | 1 |
| 25 | 90605200000 | SET RING, 20MM | 1 |
| 26 | 91003KSP910 | BEARING, RADIAL BALL, 17X42X12 | 1 |
| 27 | 91004KTN900 | BEARING, RADIAL BALL, 17X40X12 | 1 |
| 28 | 91005KTN900 | BEARING, RADIAL BALL, 12X32X10 | 1 |
| 29 | 91006KTN900 | BEARING, RADIAL BALL, 20X47X14 | 1 |
| 30 | 91216KSP911 | OIL SEAL, 20X34X7(ARAI) | 1 |
