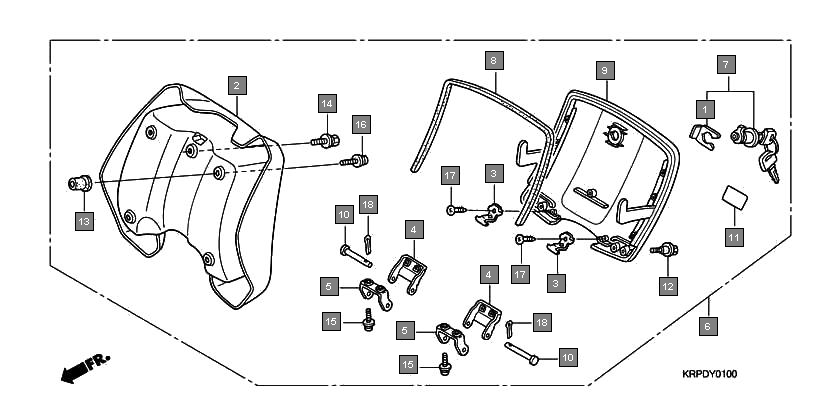

Scooters Dio SCV100FA Frame Inner box
Ref.No. Part No. Description Oty
1 75581KPL900 SPRING, LOCK KEY SETTING 1
2 81136KRP900 BOX, INNER 1
3 81137KRP900 PLATE, INNER BOX 2
4 81138KRP900 HINGE A, INNER BOX 2
5 81139KRP900 HINGE B, INNER BOX 2
6 81140KRP910 BOX SET, INNER 1
7 81145KPL900 KEY SET, INNER BOX 1
8 81157KPL900 SEAL B, INNER BOX LID 1
9 81161KPL840 LID, INNER BOX B 1
10 81167KPL900 PIN, INNER BOX B 2
11 87505KRP901 LABEL, TIRE 1
12 90114KPL900 BOLT, FLANGE, 5X16 4
13 90156KPL900 NUT, WELDING, 5X0.8 4
14 934040602507 BOLT-WASHER, 6X25 1
15 938910501218 SCREW-WASHER, 5X12 4
16 938940502508 SCREW-WASHER, 5X25 4
17 9390324380 SCREW, TAPPING, 4X12 2
18 9420116151 PIN, SPLIT, 1.6 2
