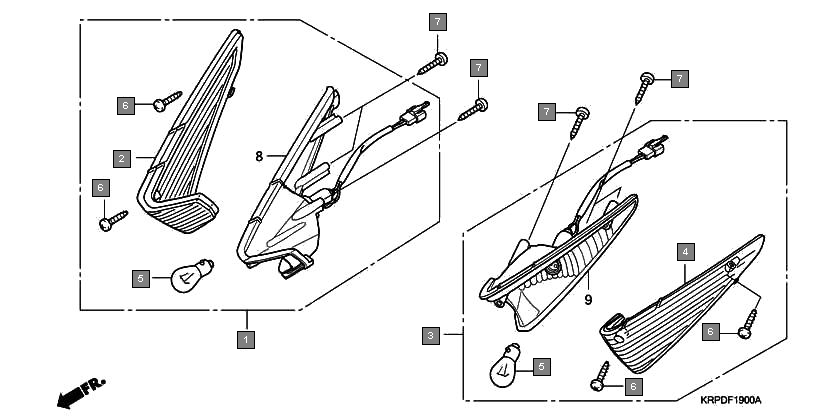

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 33400KRP981 | WINKER ASSY., R. FR. (12V 21W) | 1 |
2 | 33402KRP901 | LENS, R. FR. WINKER | 1 |
3 | 33402KRPN41 | LENS, R. FR. WINKER | 1 |
4 | 33450KRP981 | WINKER ASSY., L. FR. (12V 21W) | 1 |
5 | 33452KRP901 | LENS, L. FR. WINKER | 1 |
6 | 33452KRPN41 | LENS, L. FR. WINKER | 1 |
7 | 34904KRP980 | BULB, WINKER (12V 21W) | 2 |
8 | 34904KRY971 | BULB, WINKER LIGHT(PY21W)(AMBER)(12V 21W) | 2 |
9 | 34904KTE910 | BULB, WINKER(AMBER)(12V 21W) | 2 |
10 | 34904KTE920 | BULB, WINKER(AMBER)(12V 21W)(PY21W) | 2 |
11 | 34904KTP901 | BULB, WINKER LIGHT(12V 21W)(AMBER) | 2 |
12 | 9390124420 | SCREW, TAPPING, 4X16 | 4 |
13 | 9390124410 | SCREW, TAPPING, 4X16 | 4 |
14 | 9390325220 | SCREW, TAPPING, 5X12 | 6 |
15 | 9390335220 | SCREW, TAPPING, 5X12 | 6 |
16 | 33405KRPN41 | BASE COMP., R. WINKER | 1 |
17 | 33445KRPN41 | BASE COMP., L. WINKER | 1 |
