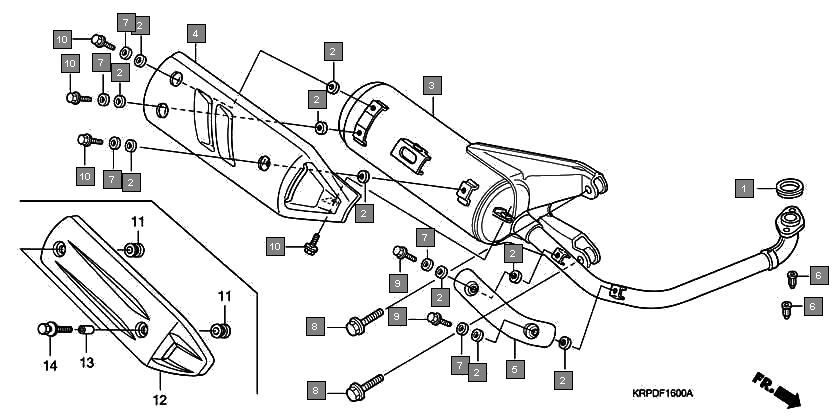

Scooters Dio SCV100FA Frame Exhaust muffler (scv100f9-tu/scv100fa-id)
Ref.No. Part No. Description Oty
1 18292GY1610 GASKET, EX. PIPE 1
2 18292KTP900 PACKING, PROTECTOR 10
3 18300KRPN40 MUFFLER COMP., EX. 1
4 18319KRP900 PROTECTOR, EX. PIPE 1
5 90308KPL840 NUT, CAP, 6MM 2
6 9410106700 WASHER, PLAIN, 6MM 5
7 958011004007 BOLT, FLANGE, 10X40 2
8 960010601007 BOLT, FLANGE, 6X10 2
9 18293KVT900 RUBBER, PROTECTOR PACKING 2
10 18318KRPN40 PROTECTOR, MUFFLER 1
11 90312KVT900 COLLAR, 9.5X10 2
12 934040602007 BOLT-WASHER, 6X20 2
