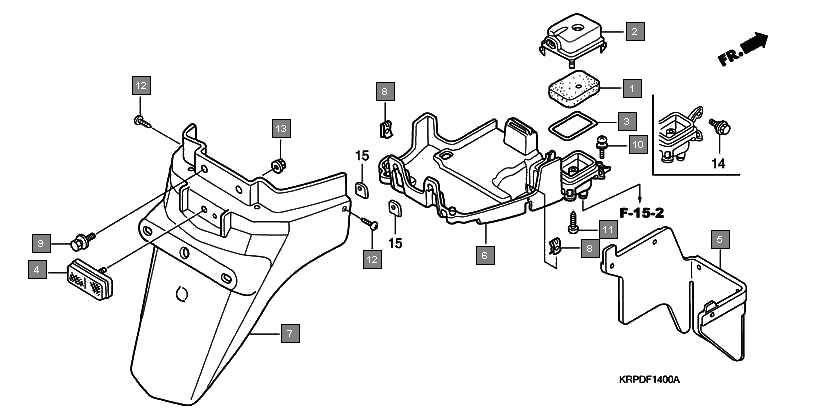

Scooters Dio SCV100FA Frame Rear fender
Ref.No. Part No. Description Oty
1 18805KPL900 ELEMENT, SUB AIR CLEANER 1
2 18807KPL900 COVER, SUB AIR CLEANER 1
3 18812KPL900 SEAL, SUB AIR CLEANER 1
4 33741KPL901 REFLECTOR, REFLEX 1
5 80104KRP900 PLATE, RR. FENDER SPLASH GUARD 1
6 80105KRP900 FENDER, RR. UPPER 1
7 80105KRP910 FENDER, RR. UPPER 1
8 80106KRP902 FENDER, RR. LOWER 1
9 80106KRPN40 FENDER, RR. LOWER 1
10 90344KRP900 NUT, CLIP, 5MM 2
11 934040601207 BOLT-WASHER, 6X12 2
12 938910601408 SCREW-WASHER, 6X14 1
13 9390325480 SCREW, TAPPING, 5X20 1
14 9390335220 SCREW, TAPPING, 5X12 2
15 9405005000 NUT, FLANGE, 5MM 1
16 90111KPL900 BOLT, INNER COVER 1
17 90301KRPN40 NUT, RR. NUMBER PLATE 2
