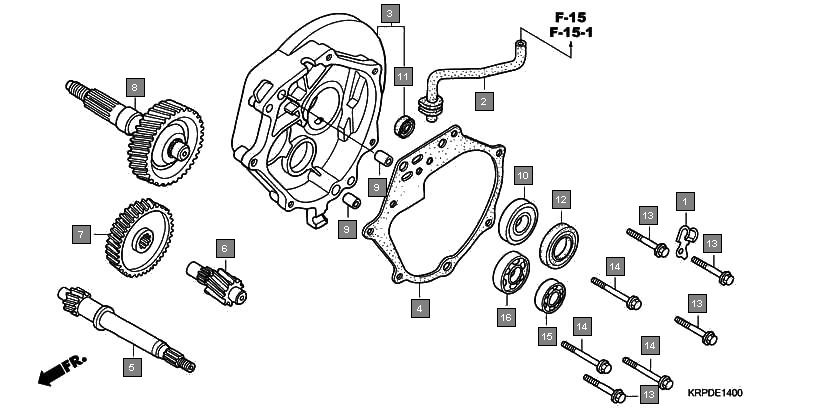

Scooters Dio SCV100FA Engine Transmission
Ref.No. Part No. Description Oty
1 11209KRP980 CLAMPER, AIR CLEANER DRAIN 1
2 11220GCC000 TUBE, MISSION BREATHER 1
3 21200KVT900 CASE COMP., MISSION 1
4 21395GFC901 GASKET, TRANSMISSION COVER 1
5 23411KPL900 SHAFT, DRIVE(20T) 1
6 23421GCC000 COUNTERSHAFT(13T) 1
7 23422GCC000 GEAR, COUNTERSHAFT(50T) 1
8 23430KPL901 GEAR COMP., FINAL(49T) 1
9 90701KPL900 DOWEL PIN, SPECIAL, 8X14 2
10 91009GW3980 BEARING, RADIAL BALL, 6004UU(NTN) 1
11 91203KPL901 OIL SEAL, 14X20X3.2 1
12 91255KPL901 OIL SEAL, 27X42X7 1
13 957010603000 BOLT, FLANGE, 6X30 4
14 957010604000 BOLT, FLANGE, 6X40 3
15 961006201000 BEARING, RADIAL BALL, 6201 1
16 961006301000 BEARING, RADIAL BALL, 6301 1
